Description：

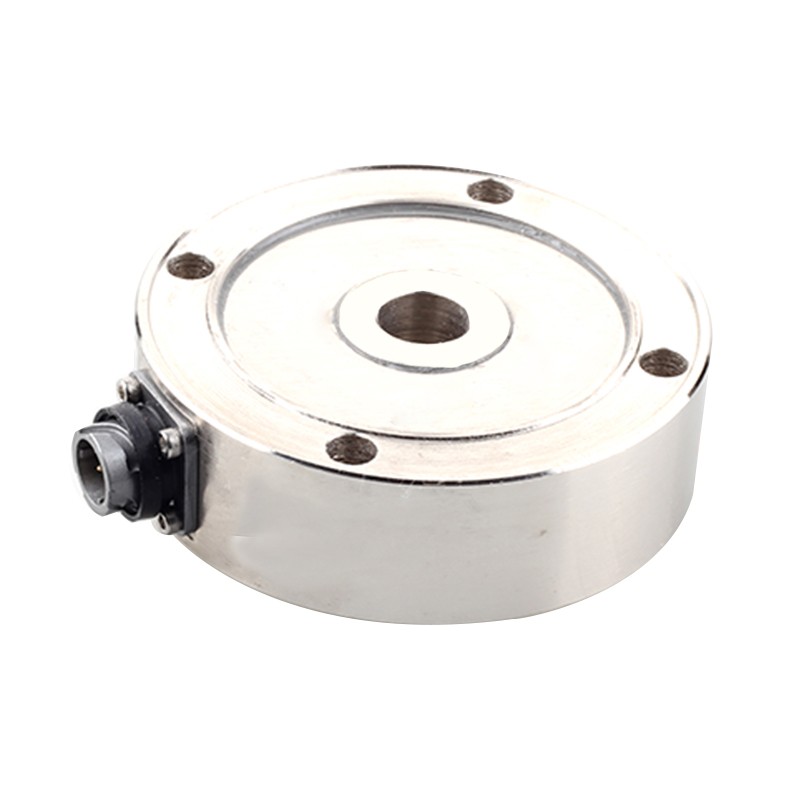

Model: LCF560
Features:
1. Capacities (t) ：2 to 5
2. Compact structure, easy to install
3. Low profile, spherical designing
4. Anodized Aluminum Alloy, High quality alloy steel with nickel plating
5. Stainless steel material is available
6. The capacity of anti¬-deviated load is very strong
7. High comprehensive precision, high stability
8. Compression load cell
9. Other capacity can be custom-made
Applications:
Be suitable for the Roller coating machine
Specifications：
Rated Load | t | 2,5 |
Rated Output | mV/V | 2.0±0.0050 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.05 |
Non-linearity | %R.O. | ±0.05 |
Hysteresis | %R.O. | ±0.05 |
Repeatability | %R.O. | ±0.03 |
Creep/30 minutes | %R.O. | ±0.05 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.05 |
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.05 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 770±10 |
Output impedance | Ω | 700±5 |
Insulation resistance | MΩ | ≥5000（50VDC） |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel | |
Degree of protection | IP67 | |
The length of the cable | m | 6m |
Wiring code | Ex: | Red：＋ Black：– |
Sig: | Green：＋ White：– |

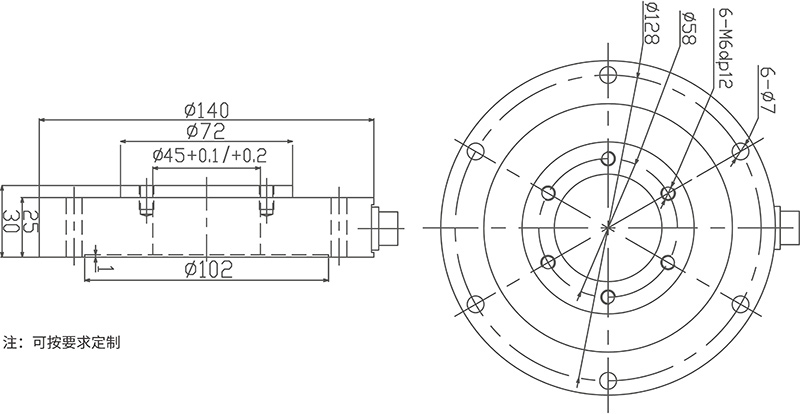

Dimensions(in mm)：

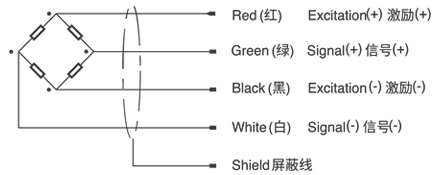

Wiring Code：
