AST series

AST series

AST series aviation wire rope tension meter is suitable for measuring the tension of aviation control wire rope. One instrument can measure up to 10 wire ropes with different wire diameters. The tension range is from 0-10.00KG to 0-500.0KG.

Features:

1. The patented technology automatically resets the meter to zero , which improves the measurement accuracy and facilitates measurement.

2. LCD backlight display, the reading is clear and accurate.

3. Three block design, the middle block can be moved up and down, which is convenient to capture the tested wire.

4.The labor-saving pressure bar design make the measurement very easy even when the tension is up to 500KG.

5. Rugged, non-slip aluminum case, resistant to electrical interference.

6. LIPO lithium-ion polymer battery (about 60 hours of continuous operation).

7. The material to be tested, the block, and the screen are on the same plane, and the data in the test, the status of the block and the material to be tested can be seen in full view

8. A maximum of 10 materials can be accurately calibrated.

9. character menu setting interface, easy to operate.

10.According to different ranges and needs, the measurement value display unit can be selected kg, N, daN, lb.

11. It can record the maximum value, minimum value, peak value and average value in the measurement process, and can also store 200 independent measurement values.

12. Programmable setting of the maximum and minimum value of the trend status bar, clearly determine the range of tension change, and have the advantages of mechanical instrument trend display.

13. Provides fine adjustment of display results. If There is a slight deviation between the material measured on site and the standard calibration material, and accurate values can be displayed without recalibration.

14. Function settings can be protected by passwords to improve setting security.

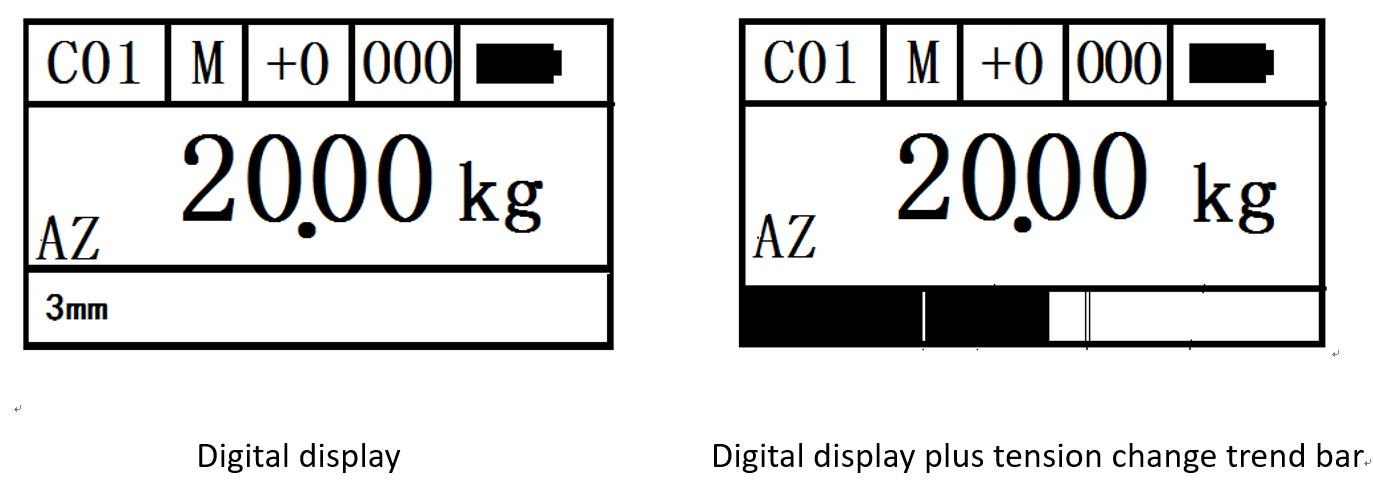

15. provides two display modes, taking into account the advantages of accurate electronic tensiometer reading and mechanical tensiometer trend display.

MODEL AST

Specifications:

Accuracy :  2% full scale (FS)

Display update frequency :   0.5 seconds

Optional units:  N, kgf, daN, LB

Adjustable range: The displayed value can be adjusted within ± 10 steps of 1% of full scale according to the site requirements

Stored value:   Maximum, minimum, maximum peak, minimum peak, average,200 Testing value

Display :  Dot-matrix LCD

Shell size:  106×40×115mm

Power : Lithium-ion rechargeable battery, continuous working for about 10 hours

Operating temperature : 10-45 ° C, 90% relative humidity or less

Accessories :  Instrument, instruction manual, certificate, charger, instrument box
