Description：

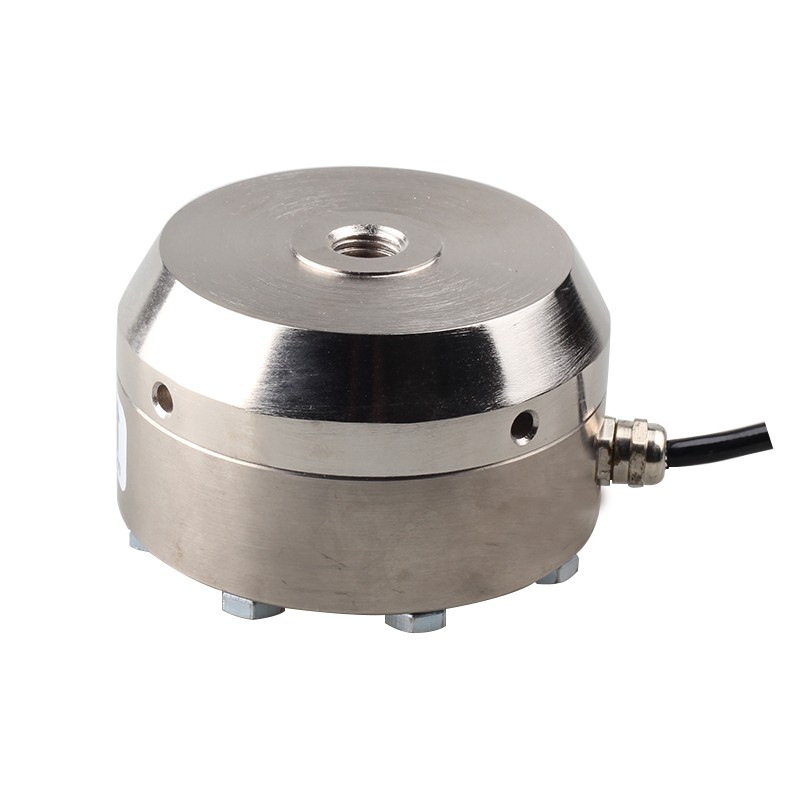

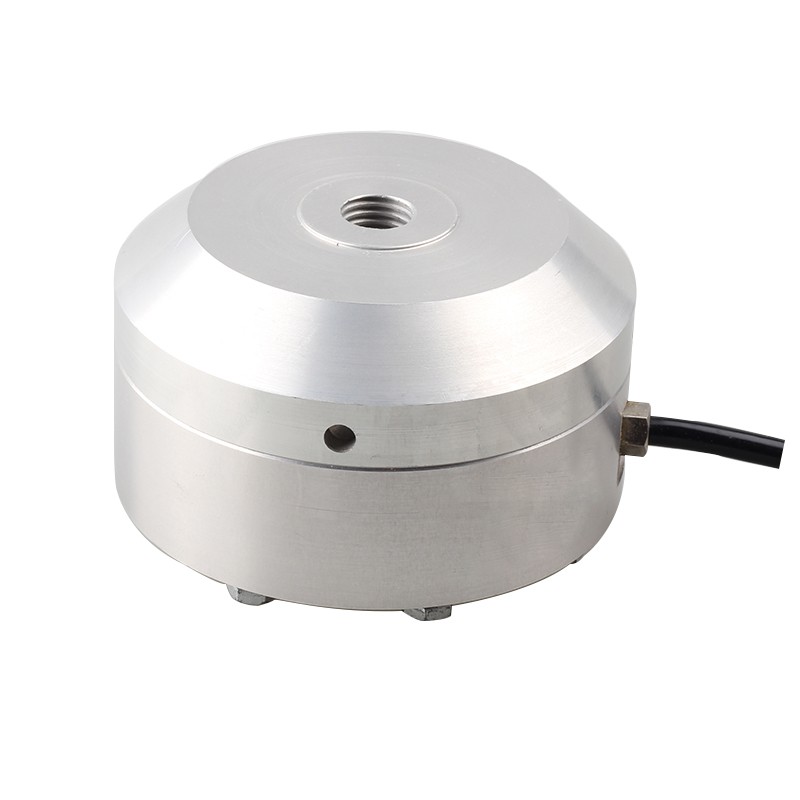

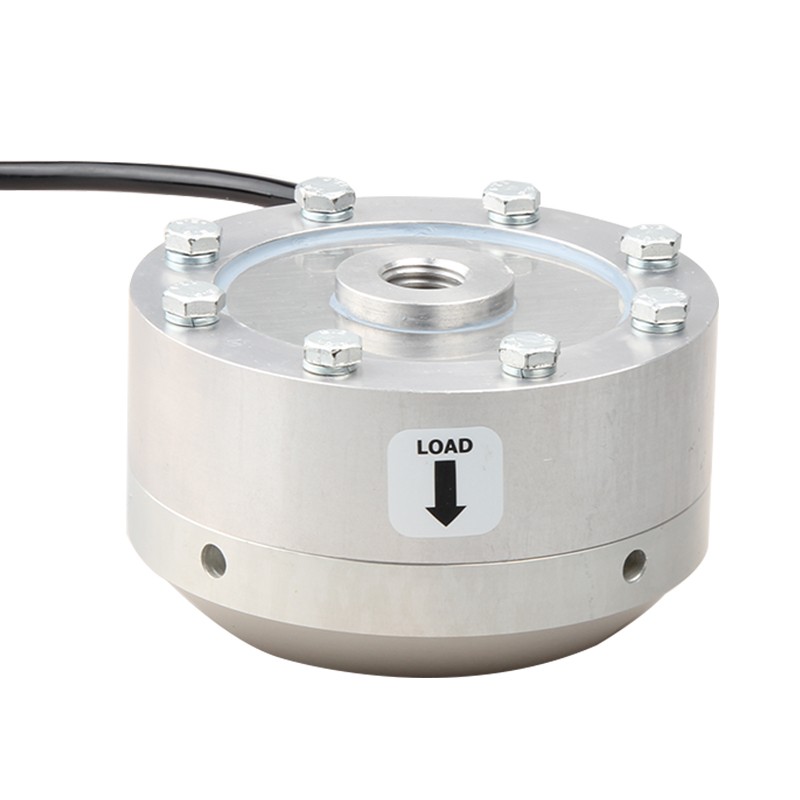

Model: LCF500
Features:
1. Capacities (KN) 2.5 to 500
2. Compact structure, easy to install
3. Low deflection for high output
4. The capacity of anti¬-deviated load is very strong
5. High comprehensive precision, high stability
6. Anodized Aluminum Alloy, High quality alloy steel with nickel plating
7. Compression and tension load cell
8. Low profile, spherical designing
Applications:
Be suitable for the fields of Truck scales, Rail scales, Ground scales, Platform scales, Hopper and tank weighing, Testing machines, Chemical, Industries of Foods, Pharmaceuticals, which has huge important on weighing and control.
Specifications：
Rated Load | KN | 2.5,5,10,25,50,100,250,500 |
Rated Output | mV/V | 2.0(2.5KN-10KN),3.0(25KN-500KN) |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.03 |
Non-linearity | %R.O. | ±0.03 |
Hysteresis | %R.O. | ±0.03 |
Repeatability | %R.O. | ±0.02 |
Creep/30 minutes | %R.O. | ±0.03 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 770±10 |
Output impedance | Ω | 700±5 |
Insulation resistance | MΩ | ≥5000（50VDC） |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Aluminum(2.5KN-10KN)/Alloy Steel (25KN-500KN) | |
Degree of protection | IP66 | |
The length of the cable | m | 2.5KN-50KN:6m 100KN-250KN:10m 500KN:15m |

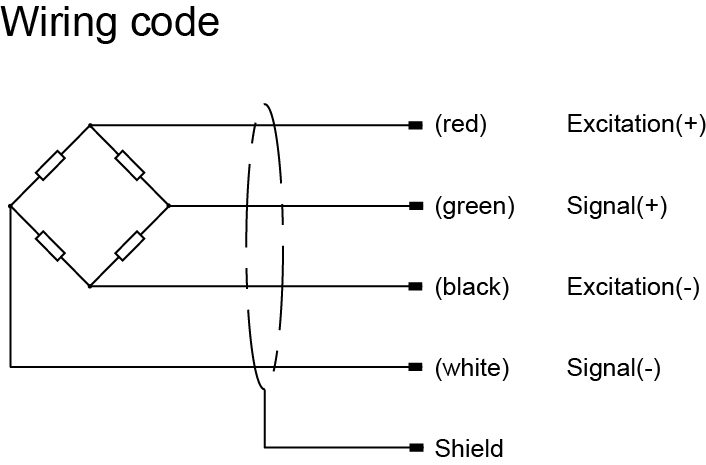

Wiring code | Ex: | Red：＋ Black：– |
Sig: | Green：＋ White：– |

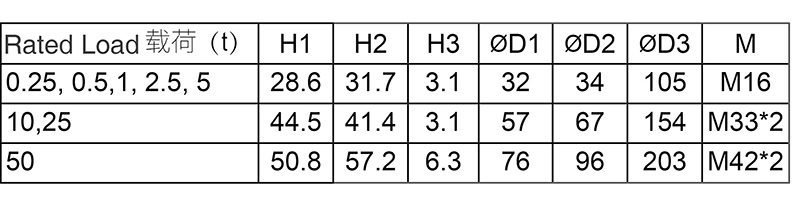

Dimensions(in mm)：
