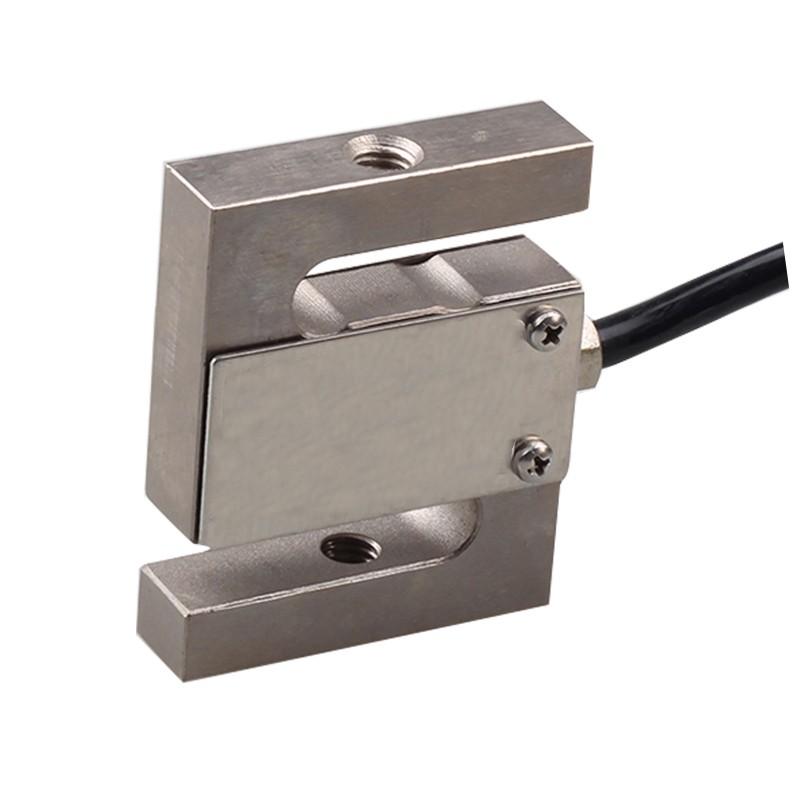

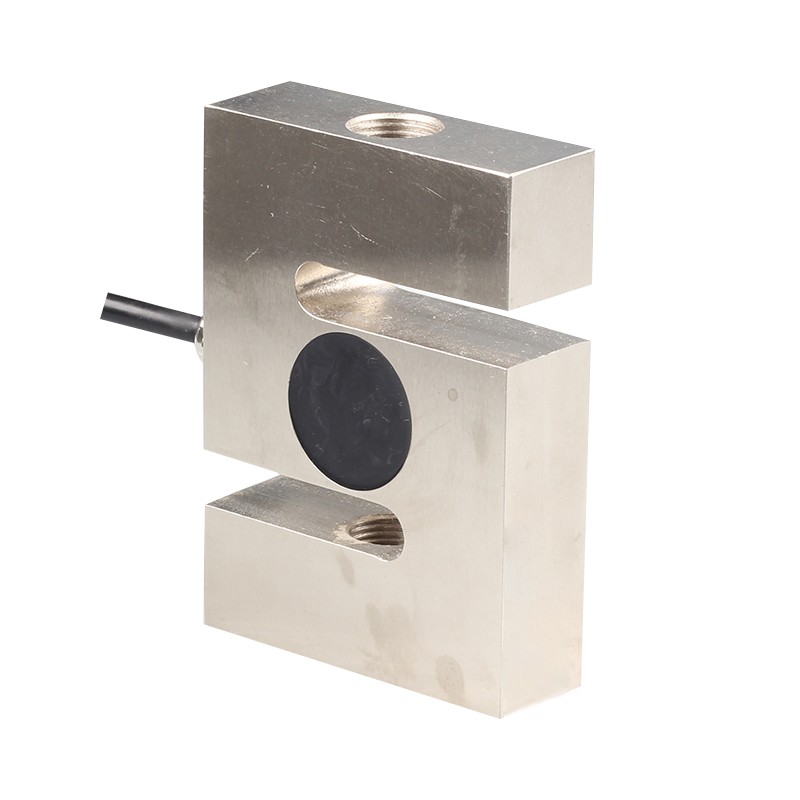

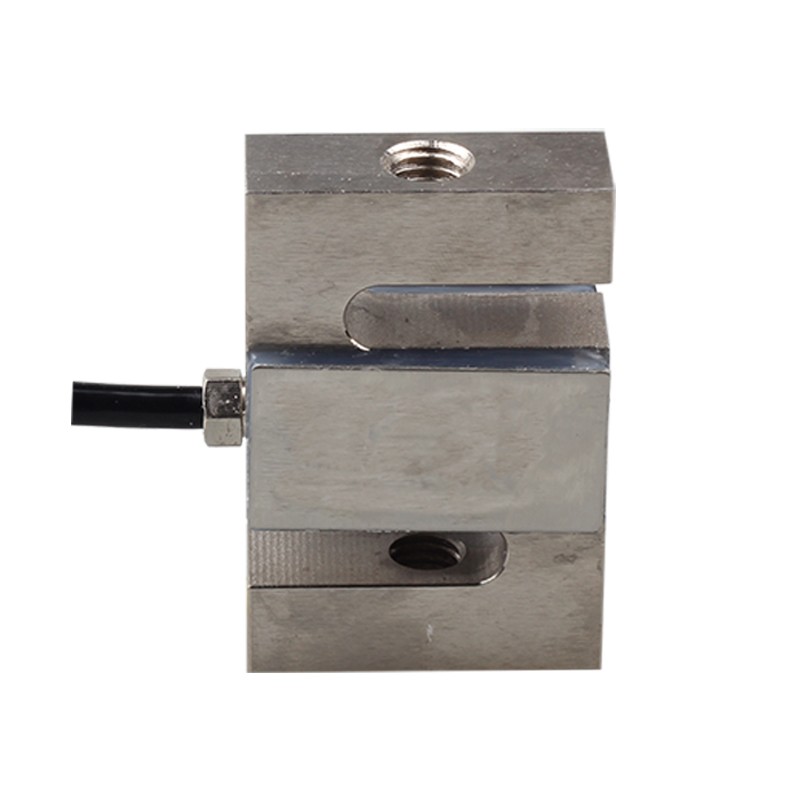

Description:
Model: STC
Features:
1. Capacities (kg): 5 to 10000
2. Compact structure, easy to install
3. Compression and tension load cell
4. High comprehensive precision, high stability
5. High quality alloy steel with nickel plating
6. Alloy steel or Stainless steel material
7. Module installing
Applications:
Be suitable for Crane Scales, Electronic mechanic scales, Hopper and tank weighing, Packing Scales, Quantitative feeding machine, filling machine, Universal material testing machine and other electronic weighing devices.
Specifications:
Rated Load | kg | 5,10,20,50,100,200,300,500 |
t | 1, 2, 3, 5, 7.5, 10 | |
Rated Output | mV/V | 2.0±0.0050 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.02 |
Creep/30 minutes | %R.O. | ±0.02 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±5 |
Insulation resistance | MΩ | ≥5000(50VDC) |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel | |
Degree of protection | IP66 | |
The length of the cable | m | 5kg-1t: 3m 2t-5t:6m 7.5t-10t:10m |
Wiring code | Ex: | Red:+ Black:– |
Sig: | Green:+ White:– |

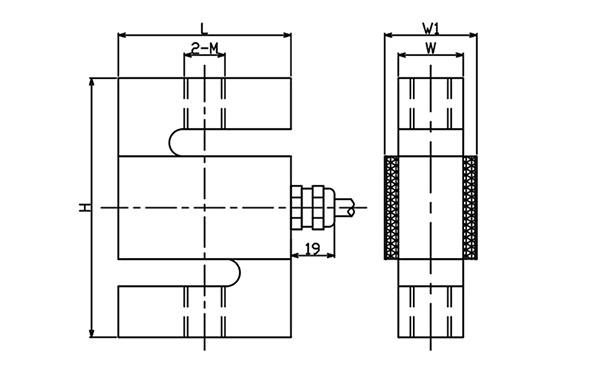

Dimension(mm):
Capacity(kg) | Unit | L | H | W | W1 | M |
5, 10, 20, 50 | mm | 50.8 | 63.5 | 12.7 | 20 | M8×1.25 |
100, 200, 300, 500 | mm | 50.8 | 76.2 | 19.1 | 27 | M 12×1.75 |
1000,1500 | mm | 50.8 | 76.2 | 25.4 | - | M 12×1.75 |
2000,3000,5000 | mm | 76.2 | 107.9 | 25.4 | - | M 20×1.5 |
7500,10000 | mm | 118 | 142 | 56 | - | M30*2 |
