Description：

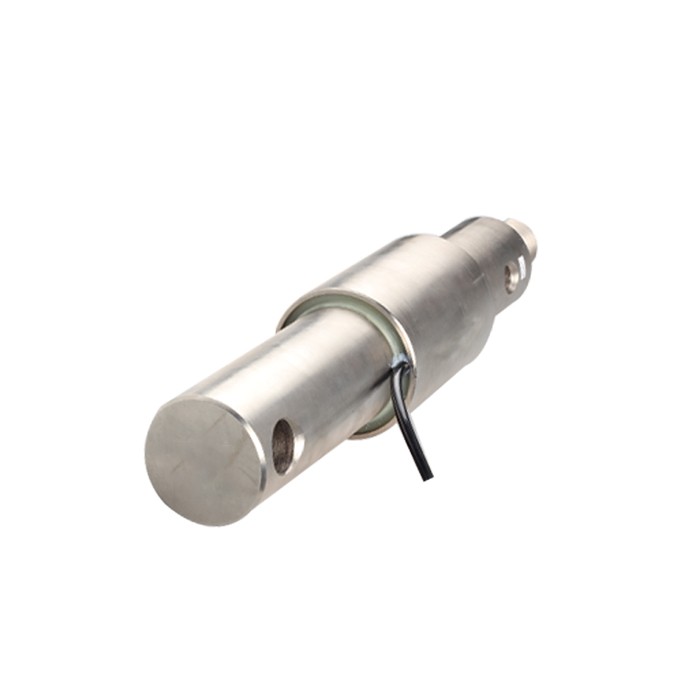

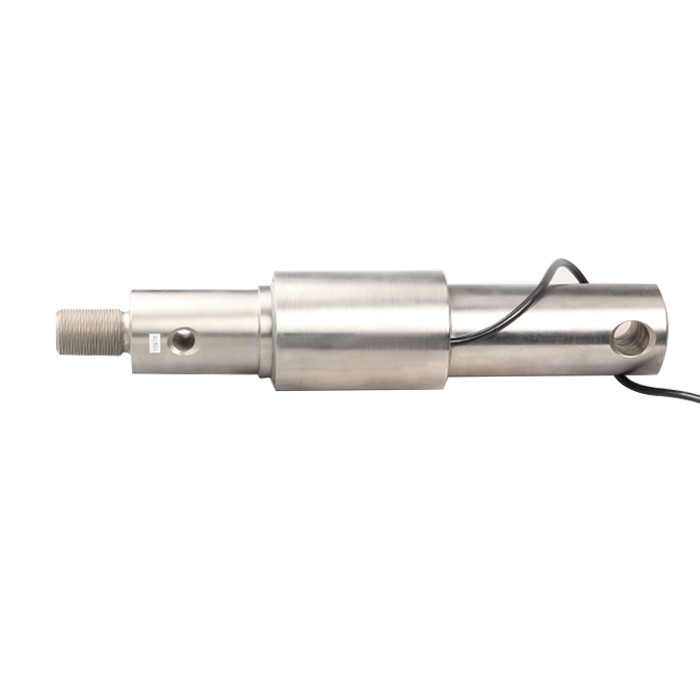

Model: WB
Features:
1. Capacities (kg): 5t
2. Compact structure, easy to install
3. The rated output is very low, Tractive-type
4. High comprehensive precision, high stability
5. High quality alloy steel with nickel plating
6. Alloy steel or Stainless steel material
7. It is mainly used for Total Mixed Ration feed mixer, tension TMR
Applications:
Be mainly suitable for Total Mixed Ration feed mixer, and weighing control of ingredients in chemical, food and pharmaceuticals industry.
Specifications:
Rated Load | t | 5 |
Rated Output | mV/V | 0.6 |
Zero Balance | %R.O. | ±1 |
Comprehensive Error | %R.O. | ±0.1 |
Non-linearity | %R.O. | ±0.1 |
Hysteresis | %R.O. | ±0.1 |
Repeatability | %R.O. | ±0.05 |
Creep/30 minutes | %R.O. | ±0.05 |
Compensated Temp. Range | ℃ | -10~+40 |
Operating Temp. Range | ℃ | -20~+70 |
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.02 |
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.02 |
Recommended Excitation Voltage | VDC | 5-12 |
Maximum Excitation Voltage | VDC | 15 |
Input impedance | Ω | 380±10 |
Output impedance | Ω | 350±5 |
Insulation resistance | MΩ | ≥5000（50VDC） |
Safe Overload | %R.C. | 150 |
Ultimate Overload | %R.C. | 300 |
Material | Alloy Steel | |
Degree of protection | IP67 | |
The length of the cable | m | 5m |
Wiring code | Ex: | Red：＋ Black：– |
Sig: | Green：＋ White：– |

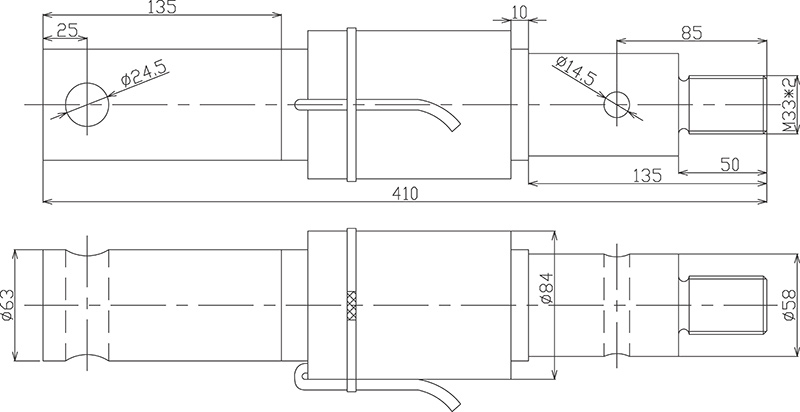

Dimensions(in mm)：

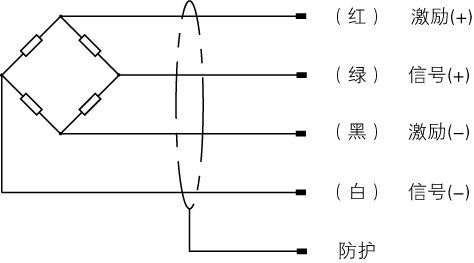

Wiring Code：
