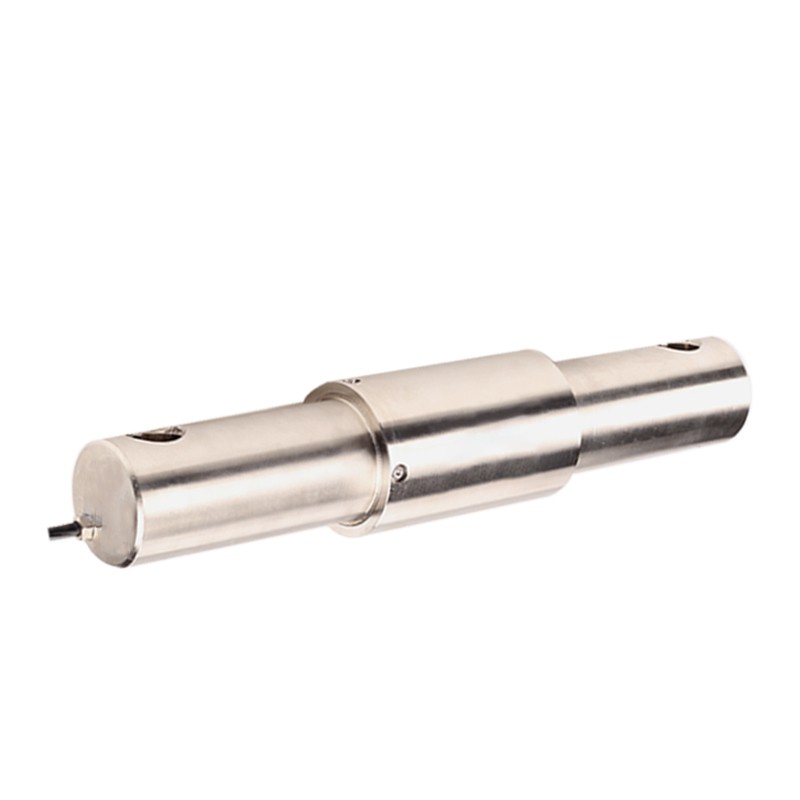

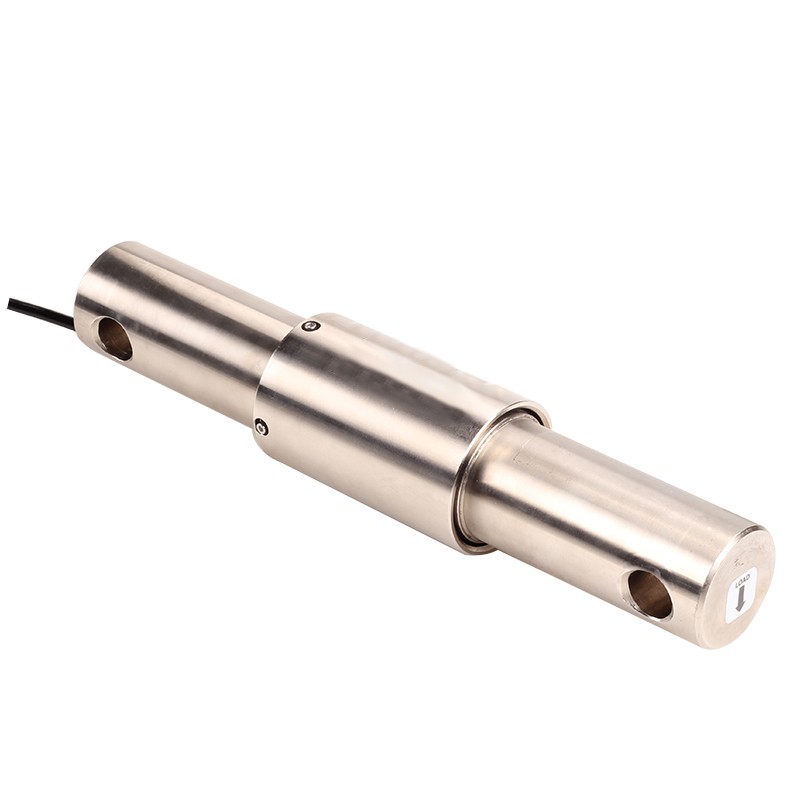

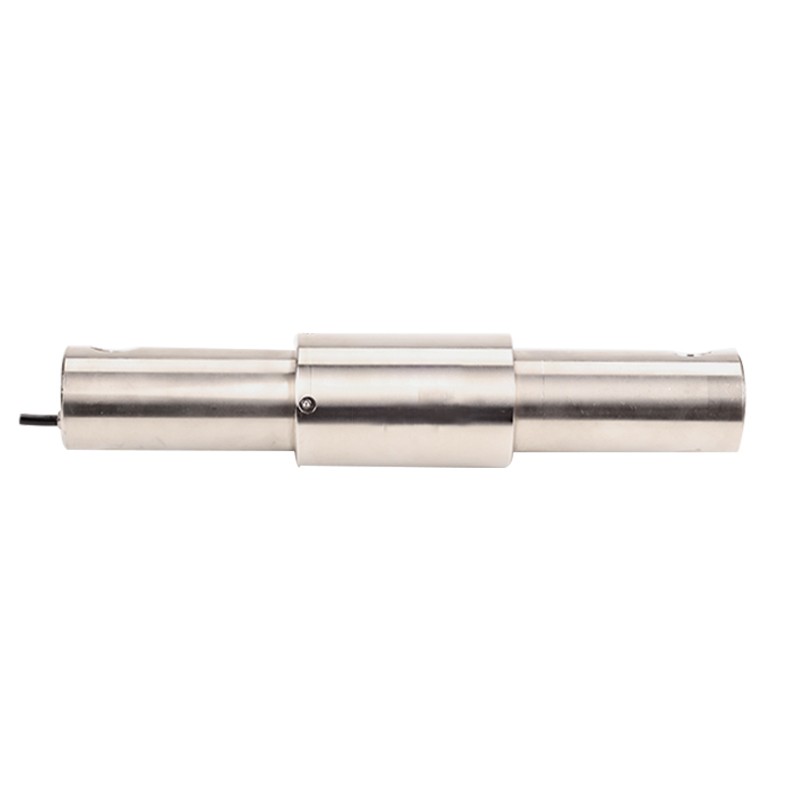

Single Ended Shear Beam Load Cell

Description:

Model: SSB

Features:

1. Capacities (kg): 5t

2. Compact structure, easy to install

3. The rated output is higher than WB, Fixed-type

4. High comprehensive precision, high stability

5. High quality alloy steel with nickel plating

6. Alloy steel or Stainless steel material

7. It is mainly used for Total Mixed Ration feed mixer, tension TMR

Applications:

Be mainly suitable for Total Mixed Ration feed mixer, and weighing control of ingredients in chemical, food and pharmaceuticals industry.

Specifications:


Rated Load

t

5

Rated Output

mV/V

1.8~-2.0

Zero Balance

%R.O.

±1

Comprehensive  Error

%R.O.

±0.1

Non-linearity

%R.O.

±0.1

Hysteresis

%R.O.

±0.1

Repeatability

%R.O.

±0.05

Creep/30 minutes

%R.O.

±0.05

Compensated Temp.   Range

-10~+40

Operating Temp.   Range

-20~+70

Temp. effect/10 on output

%R.O./10

±0.02

Temp. effect/10 on zero

%R.O./10

±0.02

Recommended   Excitation Voltage

VDC

5-12

Maximum  Excitation    Voltage

VDC

15

Input impedance

Ω

380±10

Output impedance

Ω

350±5

Insulation   resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Material


Alloy   Steel

Degree of protection


IP67

The length of the   cable

m

5m

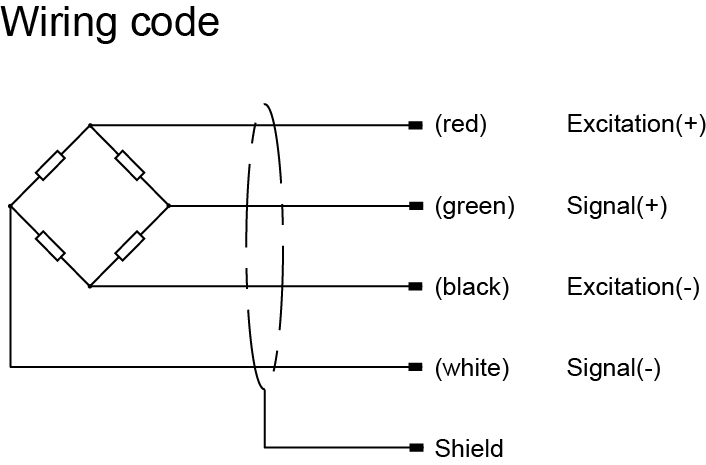

Wiring code

Ex:

Red:+     Black

Sig:

Green:+    White

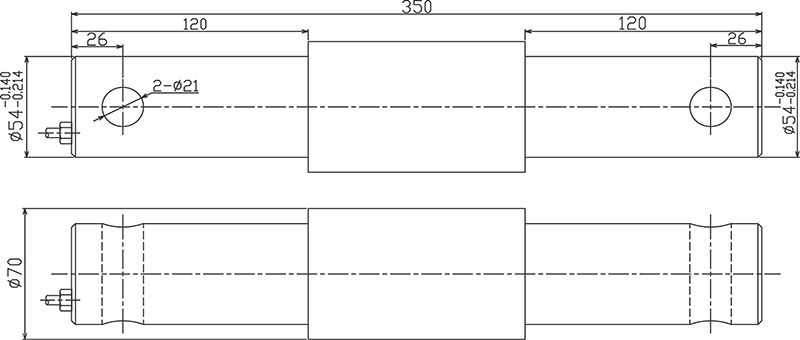

Dimensions(in mm):
