There are basically two types of papermaking tension meters available in the market, one is a digital display papermaking tension meter, and the other is a mechanical papermaking tension meter. So which of these two tension meters is more suitable for the measurement of paper machine mesh?
First of all, the digital display tension meter is generally divided into two parts, the test probe and the display unit. In general, two hands are required to operate at the same time to measure. In the paper machine on-site environment, two hands operate the equipment at the same time, which has certain safety hazards.
The mechanical wire tension meter can measure with one hand, and the other hand can play a protective role.
second. The digital display papermaking tension meter is very sensitive to the change of the tension of the mesh because the sensor is used to measure the contact of the mesh. The data is unstable and the fluctuation is relatively large. The mechanical papermaking tension meter has a maximum indicating needle, which can stably indicate the maximum value in the test as a data reference.
Third, the digital display tension meter requires batteries or charging, which is inconvenient. The mechanical tension meter does not require charging or battery replacement, and can measure at any time.
Fourth, the digital display tension meter is expensive, only two German companies produce, and the price is more than 50,000 yuan. The price of mechanical papermaking tension meter is relatively low, less than 10,000 yuan.

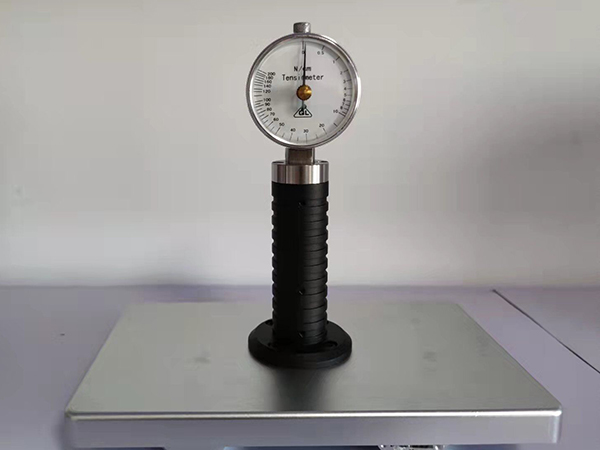

The Z-200 series papermaking tension meter produced by Baitan Technology Co., Ltd. can be selected. The following are the specific parameters of the Z-200.
6. specification Z-200
Measuring range： 0-200N/CM
accuracy： ±2.5% measured value
Dimension： Underpan : length ×width=228mm×150mm
To be used on: forming fabrics, press fabrics dryer screens
Total height: 190mm
