Which hand-held tension meter to choose for measuring enameled wire?

by BETTEN Tension Meter China TIME:2022-09-19
—— It is often necessary to measure the tension of the enameled wire in the process of winding the coil

The tension of the enameled wire needs to be measured in the production process and application process, so how to choose a hand-held tension measuring instrument to measure the tension of the enameled wire?


If most technicians have not touched the tensiometer, they cannot determine the range of the enameled wire. Here, determine the range from the angle of the wire diameter range of the enameled wire to choose a correct hand-held tension measuring instrument.

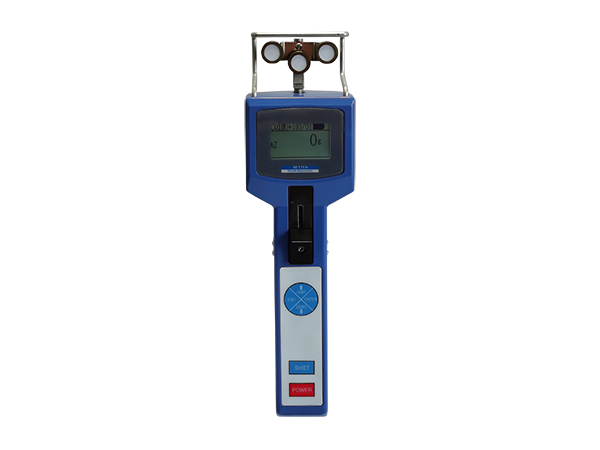

Handheld Tensiometer

The wire diameter of the enameled wire is in the range of 0.02-0.1, and the tension range is generally between 0-100g. You can choose a hand-held tension meter with a tension measurement range of 0-100g, such as the handheld tension meter from Baitan Technology Co., Ltd. NK-100, or NTS-100, has an automatic reset function, which is very convenient for testing.


The wire diameter of the enameled wire is in the range of 0.1-0.15, and the tension range is generally between 0-150g. You can choose a hand-held tension measuring instrument with a tension measurement range of 0-200 g, such as the hand-held tension measuring instrument from Baitan Technology Co., Ltd. NK-200, NT-200 or NTS-200, these three models have automatic reset function, which is very convenient for testing. The NT-200 also has a data analysis function. Make the measurement more accurate and convenient.


The wire diameter of the enameled wire is in the range of 0.15-0.25, and the tension range is generally between 0-500g. You can choose a hand-held tension measuring instrument with a tension measurement range of 0-500g, such as the hand-held tension measuring instrument from Baitan Technology Co., Ltd. NM-500, NT-500 or NTS-500, these three models have automatic reset function, which is very convenient for testing. Nt-500 has the function of data analysis, which makes the measurement more accurate and convenient.


The wire diameter of the enameled wire is in the range of 0.25-0.4, and the tension range is generally between 0-1000g. You can choose a hand-held tension measuring instrument with a tension measurement range of 0-1000g, such as the hand-held tension measuring instrument from Bai Tan Technology Co., Ltd. NT-1000, with automatic reset function and data analysis function, makes the measurement more accurate and convenient.


The wire diameter of the enameled wire is in the range of 0.4-0.6, and the tension range is generally between 0-2000g. You can choose a hand-held tension measuring instrument with a tension measurement range of 0-2000 g, such as the hand-held tension measuring instrument from Baitan Technology Co., Ltd. NT-2000, with automatic reset function and data analysis function, makes the measurement more accurate and convenient.


The wire diameter of the enameled wire is in the range of 0.6-0.8, and the tension range is generally between 0-2000g. You can choose a hand-held tension measuring instrument with a tension measurement range of 0-5000g, such as the hand-held tension measuring instrument from Betten Technology Co., Ltd. NT-5000, with automatic reset function and data analysis function, makes the measurement more accurate and convenient.
