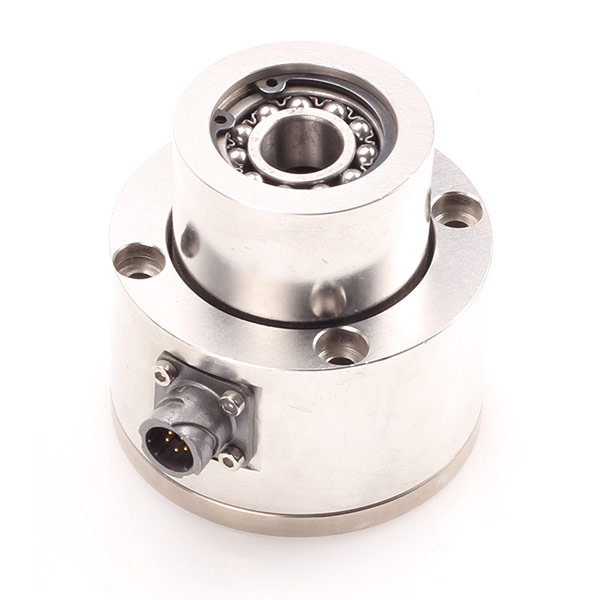

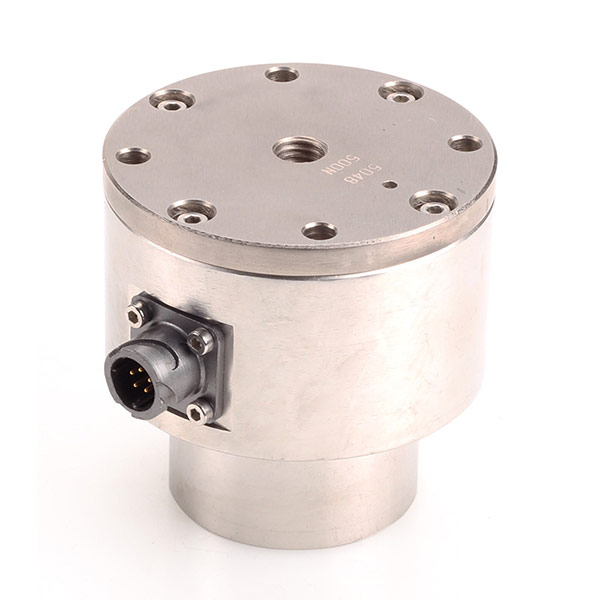

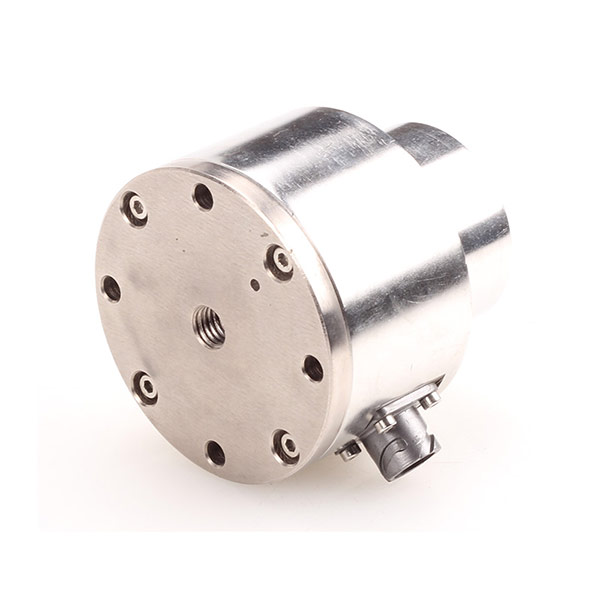

Tension Sensor


Description:

         Model: HLT

Features:

1. Capacities (kg): 10 to 100

2. Resistance strain measurement method

3. The level of water-proof reaches IP65

4. Internally generated calibration signal

5. Compact structure, easy to install

6. High comprehensive precision, high stability

7. High quality alloy steel with nickel plating

8. Stainless steel material is available

Applications:

      Be suitable for measuring the tension that plastic film or tapes exert on the guide dollars of the machinery used to coil them.

Specifications:

Rated Load

kg

10,25,50,100

Rated Output

mV/V

1 ± 0.1%

Zero Balance

%R.O.

±1

Comprehensive  Error

%R.O.

±0.3

Compensated Temp.   Range

-10~+40

Operating Temp.   Range

-20~+70

Temp. effect/10 on   output

%R.O./10

±0.03

Temp. effect/10 on zero

%R.O./10

±0.03

Recommended   Excitation Voltage

VDC

5-12

Maximum  Excitation    Voltage

VDC

15

Input impedance

Ω

380±10

Output impedance

Ω

350±5

Insulation   resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Material


Alloy   Steel

Degree of protection


IP65

The length of the   cable

m

3m

Wiring code

Ex:

Re:     Black:–

Sig:

Green:    White:–

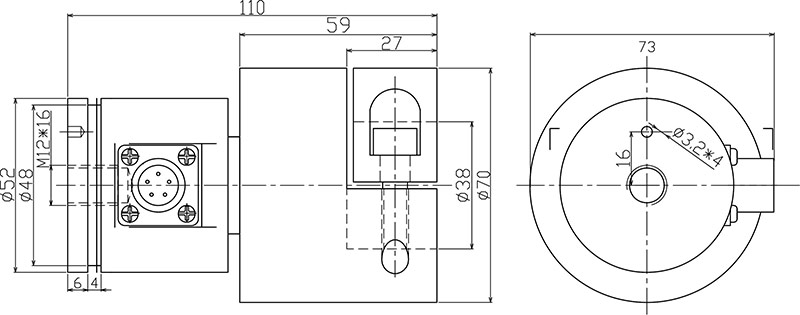

Dimensions(in mm):

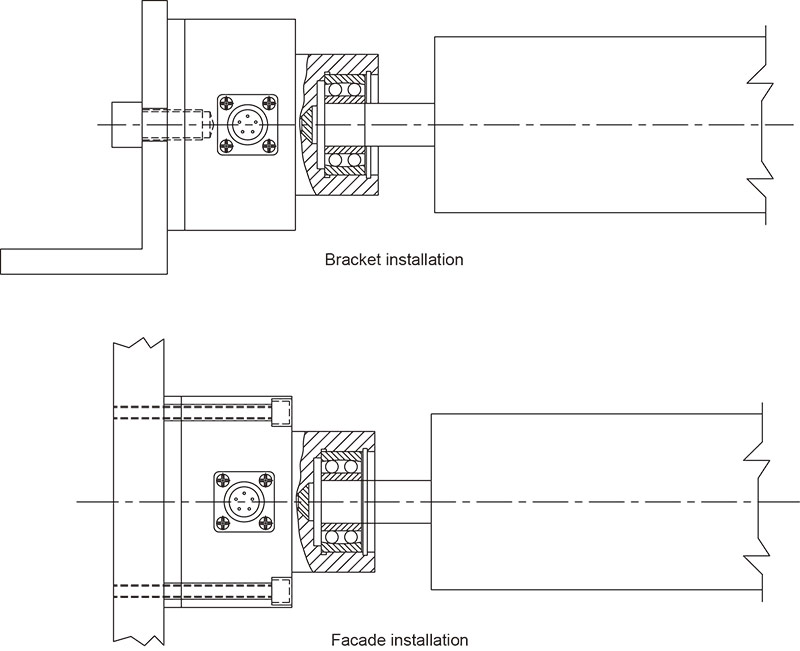

Installation:

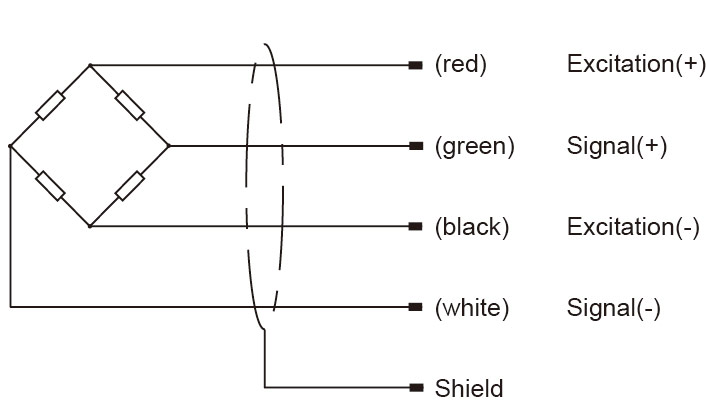

Wiring Code:
