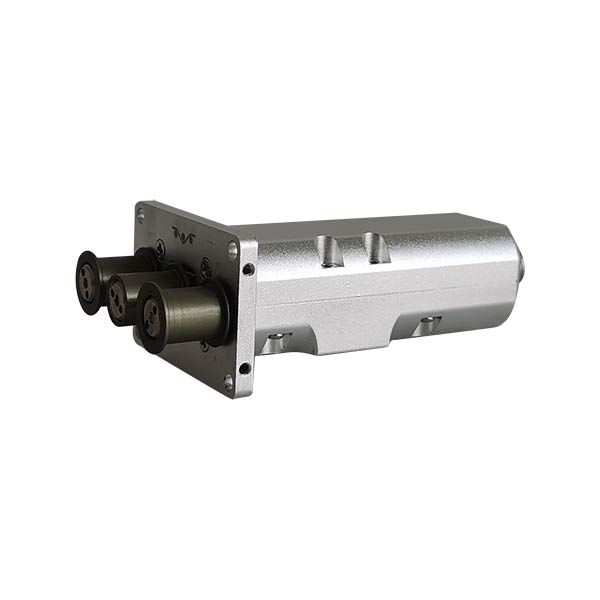

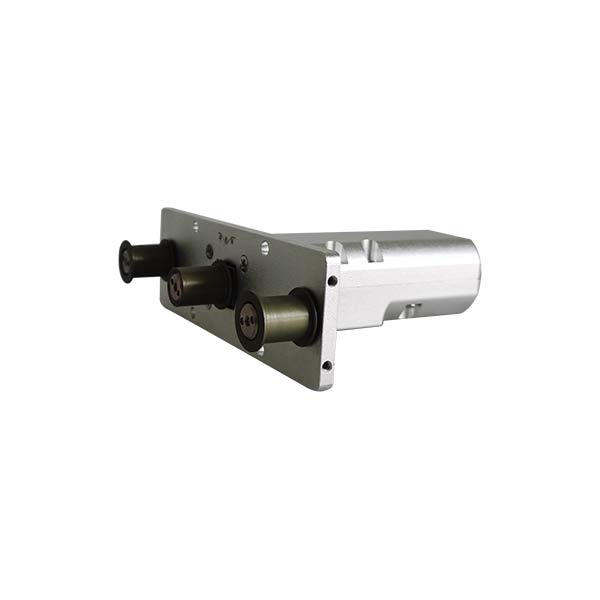

BTSB

The BTSB series is suitable for measuring the tension of wide materials such as tapes and metal foils
CONTACT INFORMATION

ADDRESS:Betten technology Co.,Ltd.22nd Floor,Ocean Blue Diamond,No. 501 Nandi West Road,Heping District,Shenyang,China

PHONE:+86-13911001672

TEL:+86-24-24754482

The BTSB series is suitable for measuring the tension of wide materials such as tapes and metal foils.

Technical data – BTSB series:

Rated measuring ranges available(FS):0-0.5N to 0-50N

Accuracy :      ±1%FS

Calibration:      According to BETTEN factory procedure

Power supply:       5-10VDC

Input resistance:     350±5

Out resisitance:      350±5

Isolation resistance:   ≥3000MΩ(50VDC)

Output on zero point:      <0.1mv/v

Temperature influence on zero point:  ±0.05%FS/10℃

Temperature influence on zero calibratiuon:±0.05%FS/10℃

Overload protection:      200%FS

Air humidity:      85%RH,MAX

Operational temperature range :  -10到+40℃

Housing material:    Aluminium

Weight net(gross):    approx. 400g(900g)

Connection cable:      robust, flexible, shielded

4X0.2²,3mlong ,Cable ∅6mm,open ends with splices. Sheath special PVC

Connection type:    Excitation voltage +:red

Excitation voltage -:black

                    Output signal +:green

Output signal -:white

                    Shielded wire:silver

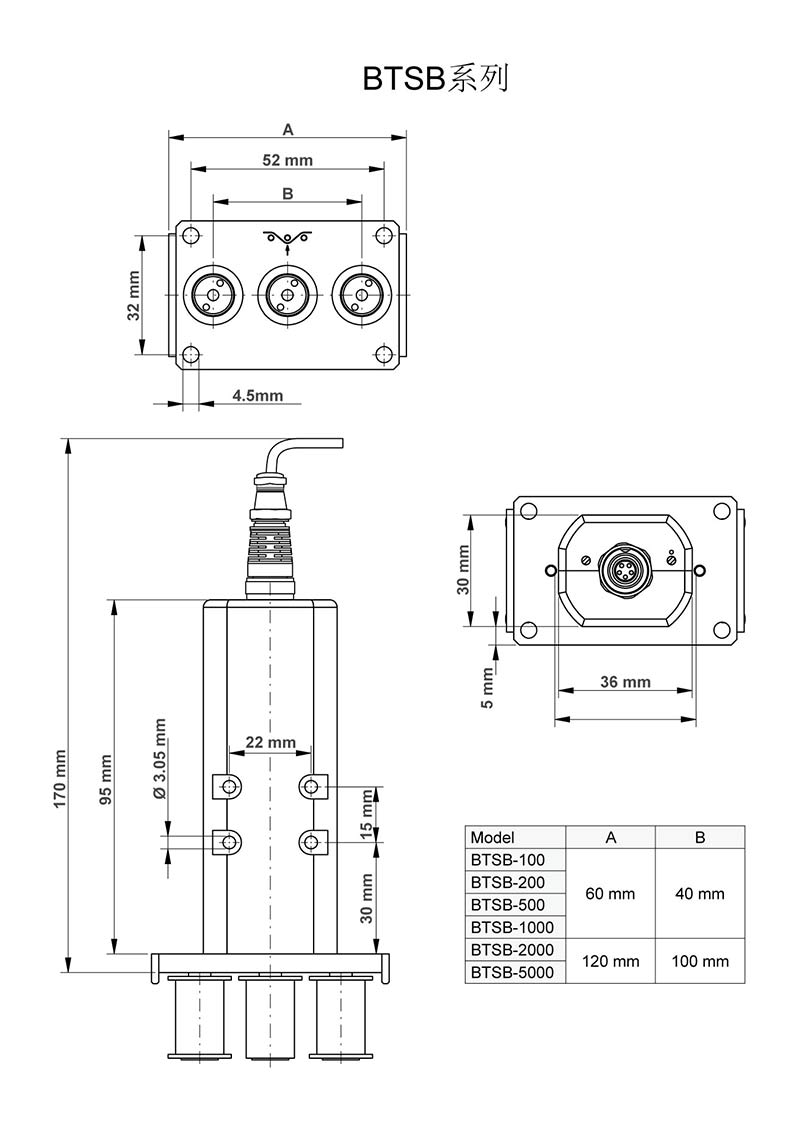

Model

Tension range

Available roller width

BTSB-50

0.5-50.0 cN

7,10,15,20,30,40,50mm

BTSB-100

1.0-100.0 cN

7,10,15,20,30,40,50mm

BTSB-200

2.0-200.0 cN

7,10,15,20,30,40,50mm

BTSB -500

5.0-500.0 cN

7,10,15,20,30,40,50mm

BTSB -1000

10-1000 cN

7,10,15,20,30,40,50mm

BTSB-2000

20-2000 cN

7,10,15,20,30,40,50mm

BTSB-5000

50-5000 cN

7,10,15,20,30,40,50mm
