Double Ended Shear Beam Load Cell

616 Double Ended Shear Beam Load Cell

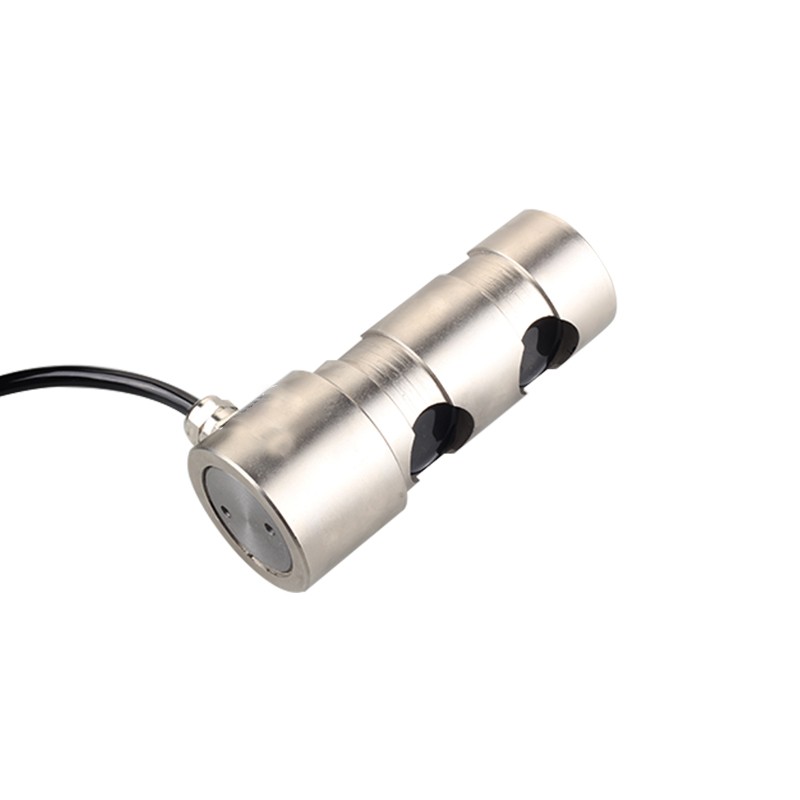

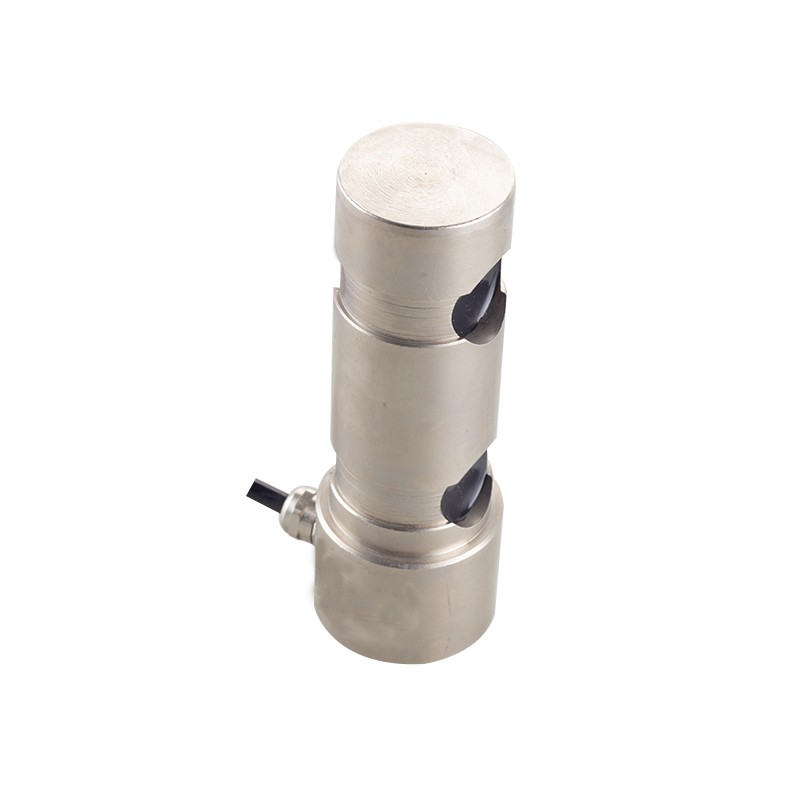

Description：

Model: 616

Features:

1. Capacities (t): 2 to 40

2. Compact structure, hollow section, tube type

3. The capacity of anti¬-torsion and bend resistance is very strong

4. Easy to assemble and use

5. High stability

6. High quality alloy steel with nickel plating

7. Can be custom-made

Applications:

Be used in rope, shackles, bearing blocks and other special scales.

Specifications:

Rated Load	t	2,5,10,20,40
Rated Output	mV/V	1.5
Zero Balance	%R.O.	±2
Comprehensive Error	%R.O.	±0.5
Repeatability	%R.O.	±0.2
Creep/30 minutes	%R.O.	±0.2
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10 ℃	±0.1
Temp. effect/10℃ on zero	%R.O./10 ℃	±0.1
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	770±10
Output impedance	Ω	700±5
Insulation resistance	MΩ	≥5000（50VDC）
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	300
Material		Alloy Steel/Stainless Steel
Degree of protection		IP66/ip68
The length of the cable	m	6m

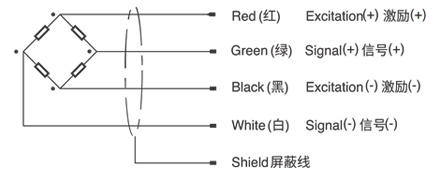

Wiring code	Ex:	Red：＋ Black：–
Wiring code	Sig:	Green：＋ White：–
