How many types of electronic tensiometers are there? What kind of electronic tension meter should be

Electronic tension meter is suitable for tension measurement of chemical fiber, textile, wire and cable, optical fiber cable, steel cable and other materials. So how to choose the electronic tensiometer for different materials? In the chemical fiber industry, the tension of the chemical fiber in the pre-spinning stage needs to be measured by an electronic tensiometer. In the state of high-speed movement of chemical fiber, the speed of the guide wheel of the general electronic tension meter cannot meet this speed. Electronic tensiometers with ceramic lead posts with special surfaces are required for measurement. Electronic tensiometers for measuring chemical filaments need to meet the two functions of low-friction ceramic lead posts and automatic zero-clearing. It is recommended to use the electronic tensiometer for NTSC series chemical filament produced by Betten Technology Co., Ltd. In the wire and cable industry, an electronic tensiometer is also required to measure the tension of wires such as metal wires and enameled wires. The wire diameter of the wire varies greatly, so it cannot be simply measured with a general tensiometer, otherwise the error will be very large. The electronic tension meter in the wire and cable industry needs to meet the two functions of a wire diameter compensator and an automatic zero reset. The wire diameter compensator can reduce the measurement error caused by the wire diameter change, and the automatic zero-clearing function can reduce the error caused by the posture change when holding the tension meter. It is recommended to use the NT series electronic tensiometer from Betten Technology Co., Ltd. The following is the introduction information of NTSC series tensiometer.

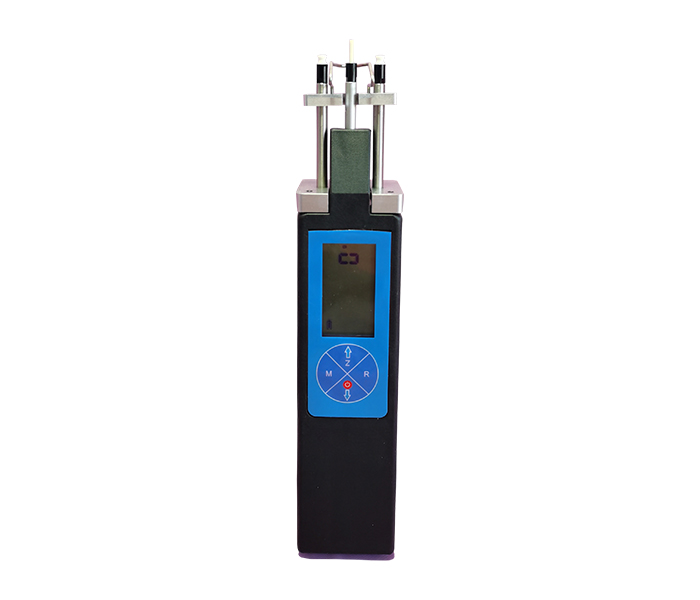

NTSC series Electronic tension meters is for hard to reach and limited access space applications With ceramic pins for line speeds up to max. 6000 m /min, suitable for the measurement of high speed chemical fiber.

NTSC series has 4 kinds of tension range from 0.3-100.0cN to 5-500cN

New Features of Model NTSC Series

1. The patented technology automatically resets the meter to zero , which improves the measurement accuracy and facilitates measurement.

2. The tested material, the guide roller, and the screen are located on the same plane. During the test, the test data, the status of the guide roller and the tested material can be seen.

3. The screen display direction can be changed according to the customer's holding method, which is convenient for reading.

4. g, c N can be selected as the unit for measuring value display.

5. Record the maximum value, minimum value and draw value during the measurement.

6. Equipped with lead frame and guide roller movement structure, easy to capture the tested material


Model NTSC

Model

Tension range

Measuring head width

Calibration materials (Polyamide Monofilament)

NTSC-100

1.0-100.0 cN

40mm

φ0.2mm

NTSC-200

2-200 cN

40mm

φ0.2mm

NTSC-500

5-500 cN

40mm

φ0.2mm

Unit conversion: 1cN = 1.02g


Specifications:

Accuracy :              (calibration material) ± 1% of full scale (FS), (other materials) ± 3% of full scale (FS)

Display update frequency 0.5 seconds

Optional unit            g, cN

Line speed NTS         6000m / min

Stored value             Maximum, minimum, average

Display                     LCD

Case size                  225X45 X 30 mm

Power                      Li-ion rechargeable battery, continuous working for about 30 hours

Operating temperature    10-45 ° C, 90% relative humidity or less

Shipment include         tension meter, instruction manual, certificate, charger, instrument box

Scope of application      Tension measurement of yarn, chemical fiber, fine metal wire in textile, chemical fiber, wire and cable industry
