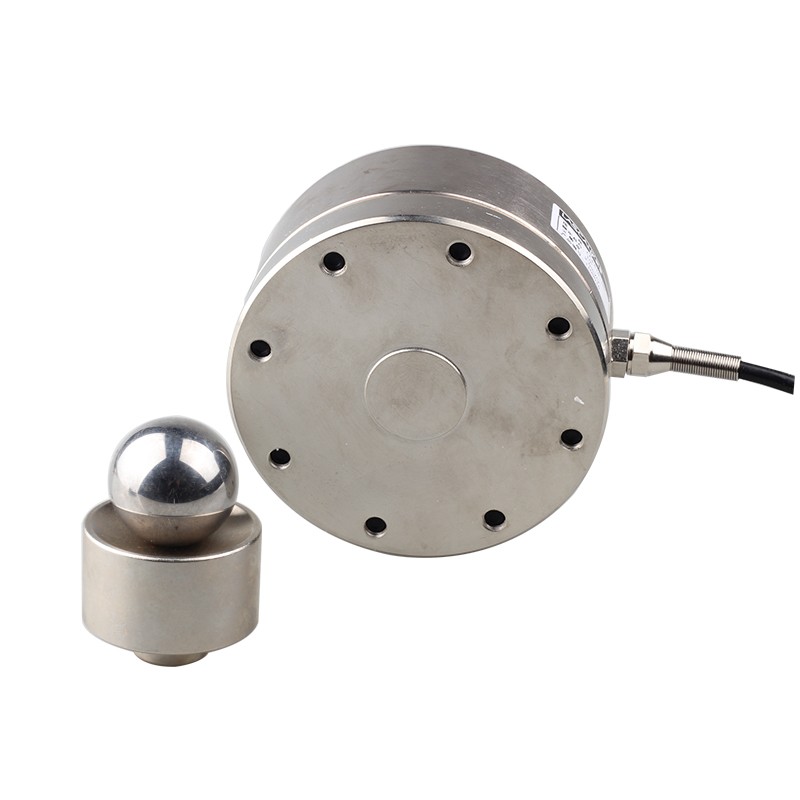

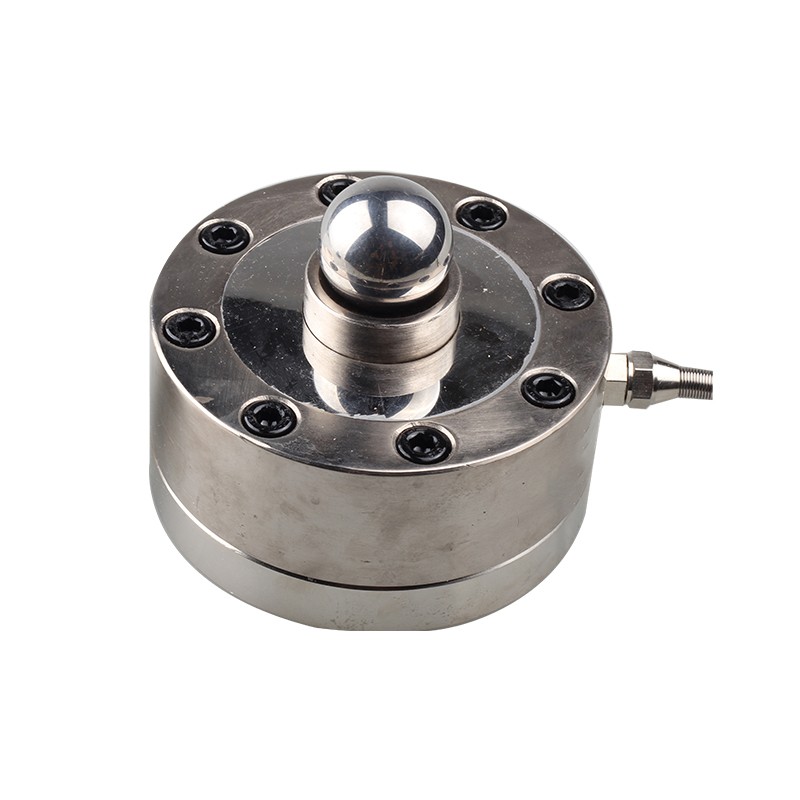

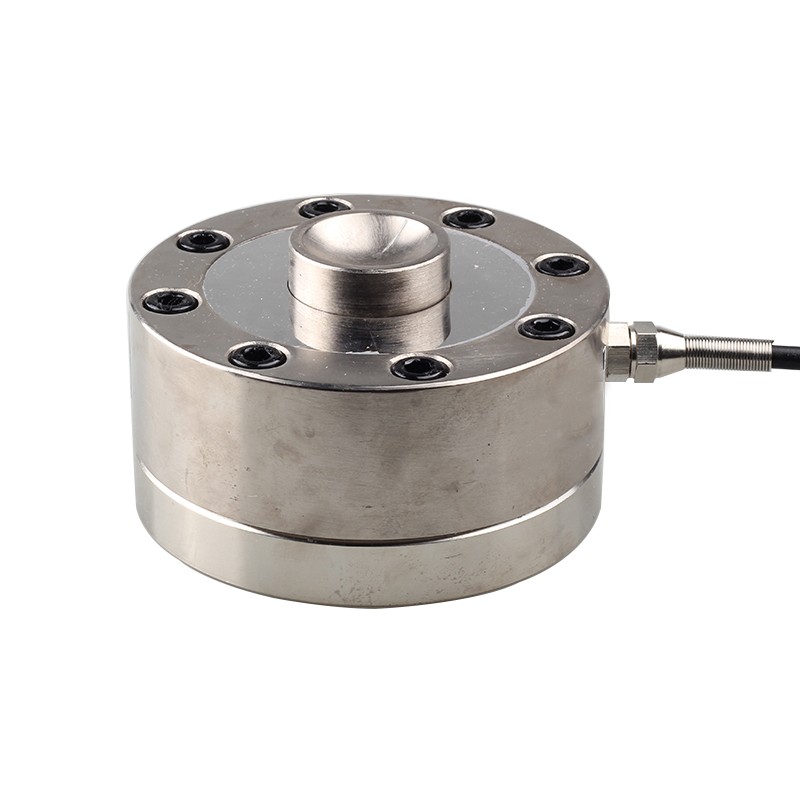

Pancake Load Cell
LCF510
Description:
Model: LCF510
Features:
1. Capacities (t):5 to 50
2. Compact structure, easy to install
3. Low profile, spherical designing
4. The capacity of anti¬-deviated load is very strong
5. High comprehensive precision, high stability
6. High quality alloy steel with nickel plating
7. Compression load cell
Applications:
Be suitable for the fields of Truck scales, Rail scales, Ground scales, Heavy capacity Platform scales, hopper and tank weighing, Testing machines.
Specifications：
|
Rated Load |
t |
5,10,25,50 |
|
Rated Output |
mV/V |
2.0±0.0050 |
|
Zero Balance |
%R.O. |
±1 |
|
Comprehensive Error |
%R.O. |
±0.03 |
|
Non-linearity |
%R.O. |
±0.03 |
|
Hysteresis |
%R.O. |
±0.03 |
|
Repeatability |
%R.O. |
±0.02 |
|
Creep/30 minutes |
%R.O. |
±0.03 |
|
Compensated Temp. Range |
℃ |
-10~+40 |
|
Operating Temp. Range |
℃ |
-20~+70 |
|
Temp. effect/10℃ on output |
%R.O./10 ℃ |
±0.02 |
|
Temp. effect/10℃ on zero |
%R.O./10 ℃ |
±0.02 |
|
Recommended Excitation Voltage |
VDC |
10 |
|
Maximum Excitation Voltage |
VDC |
15 |
|
Input impedance |
Ω |
770±10 |
|
Output impedance |
Ω |
700±5 |
|
Insulation resistance |
MΩ |
≥5000（50VDC） |
|
Safe Overload |
%R.C. |
150 |
|
Ultimate Overload |
%R.C. |
300 |
|
Material |
Alloy Steel |
|
|
Degree of protection |
IP66 |
|
|
The length of the cable |
m |
6m(5t, 10t),13m(25t, 50t) |
|
Wiring code |
Ex: |
Red:＋ Black:– |
|
Sig: |
Green:＋ White:– |

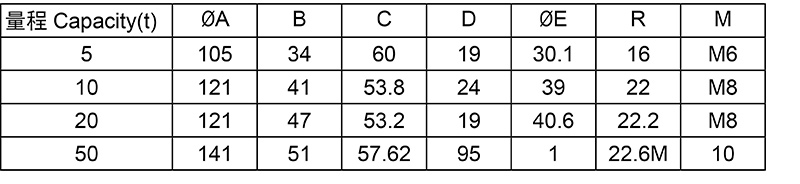

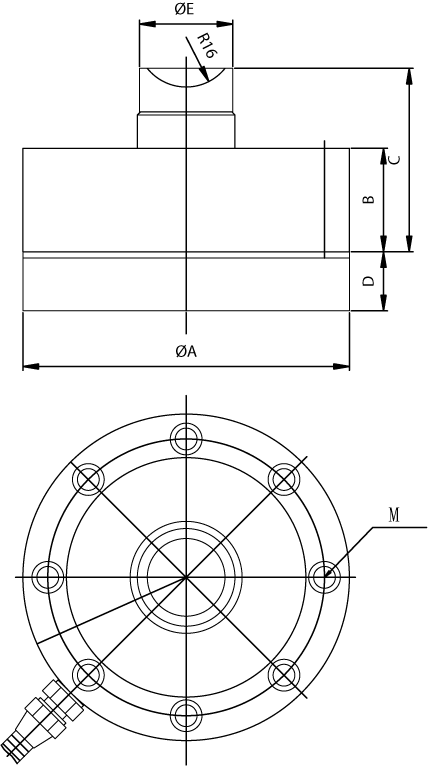

Dimensions(in mm)：
