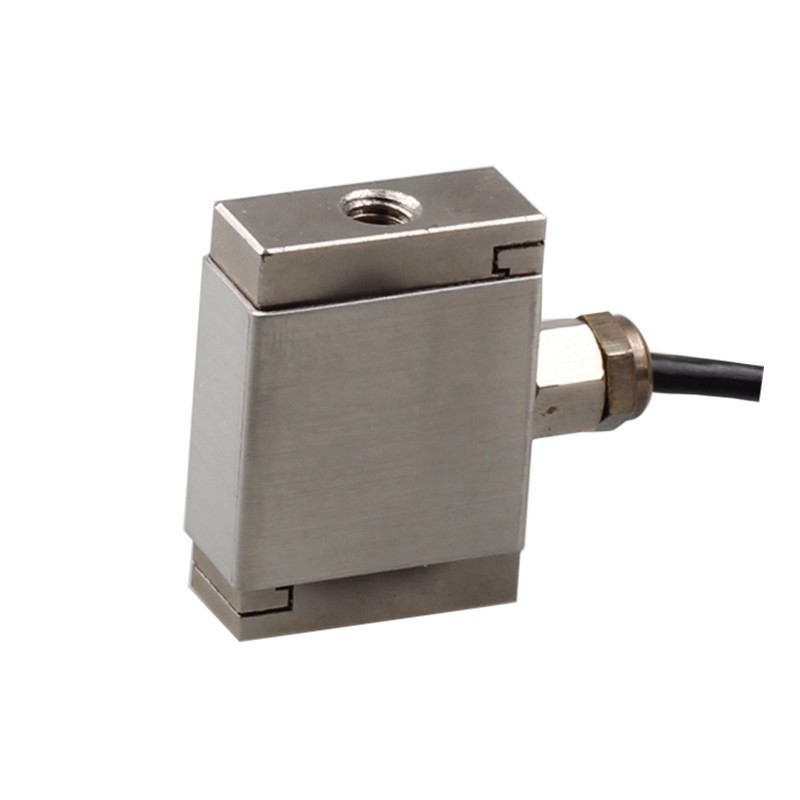

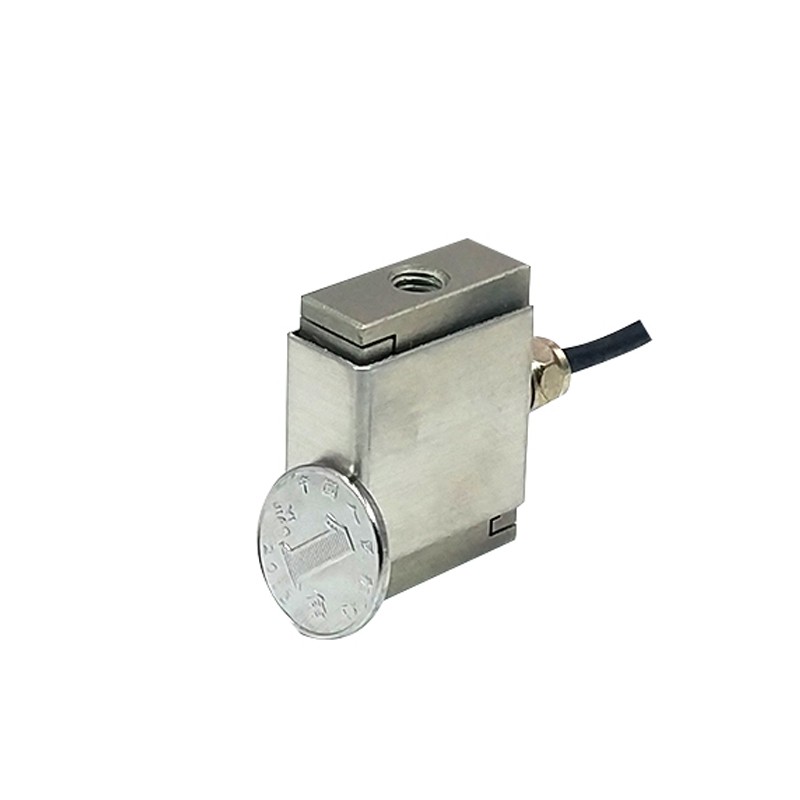

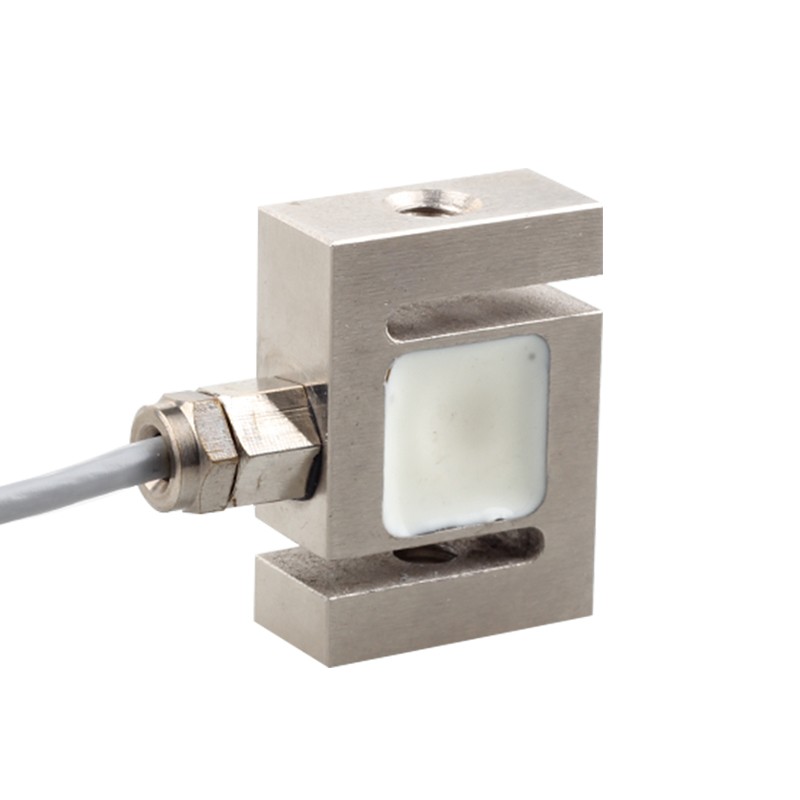

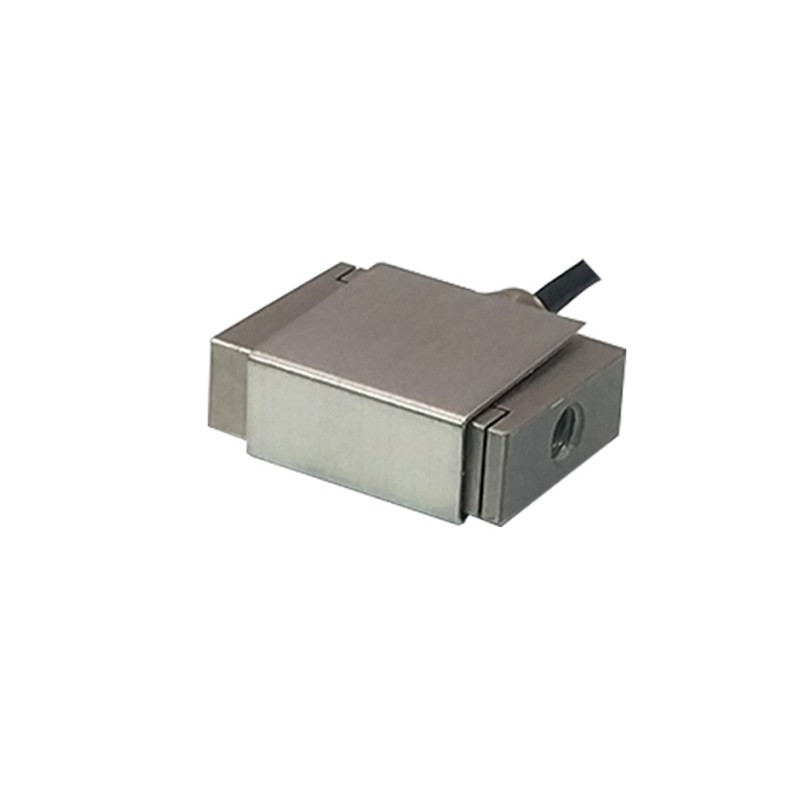

S-Type load cell

  • STM
  • STM
  • STM
  • STM
STM STM STM STM

Description:

Model: STM

Features:

1. Capacities (kg): 2 to 50

2. Compact structure, easy to install

3. Compression and tension load cell

4. High comprehensive precision, high stability

5. Stainless steel material

Applications:

Be suitable for a wide range of applications including testing or weighing systems, and it can be put into the device, in order to monitor the force.

Specifications:


Rated Load

kg

2,5,10,20,50

Rated Output

mV/V

1(2kg),2(5kg-50kg)

Zero Balance

%R.O.

±2

Comprehensive  Error

%R.O.

±0.05

Non-linearity

%R.O.

±0.05

Hysteresis

%R.O.

±0.05

Repeatability

%R.O.

±0.05

Creep/30 minutes

%R.O.

±0.05

Compensated Temp. Range

-10~+40

Operating Temp. Range

-20~+70

Temp. effect/10 on output

%R.O./10

±0.05

Temp. effect/10 on zero

%R.O./10

±0.05

Recommended Excitation Voltage

VDC

5-10

Maximum  Excitation  Voltage

VDC

15

Input impedance

Ω

350±5

Output impedance

Ω

350±3

Insulation resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

200

Material

Stainless Steel

Degree of protection

IP65

The length of the cable

m

1m(2kg-10kg),3m(10kg-50kg)

Wiring code

Ex:

Red:     Black:–

Sig:

Green(Blue):    White:–

Dimensions (in mm):


1-2003121452043R.jpg  1-200312145210E1.jpg
