Washer Force Transducer

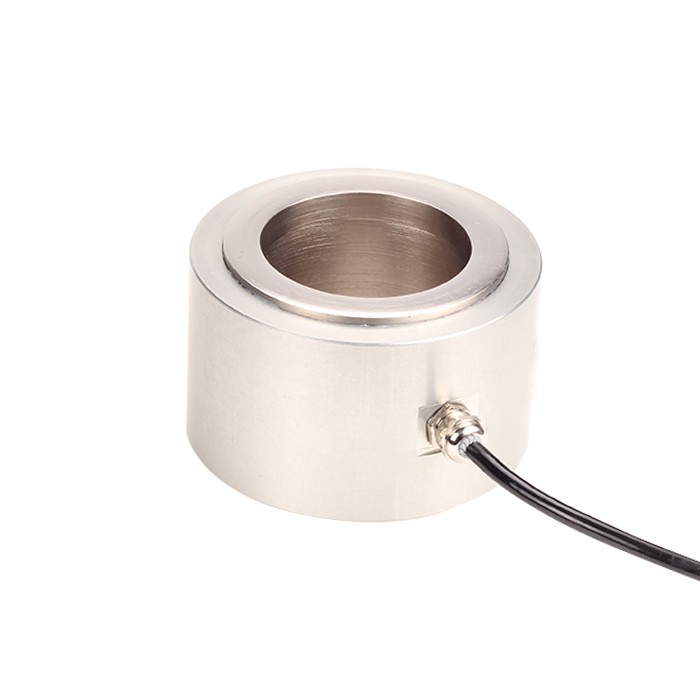

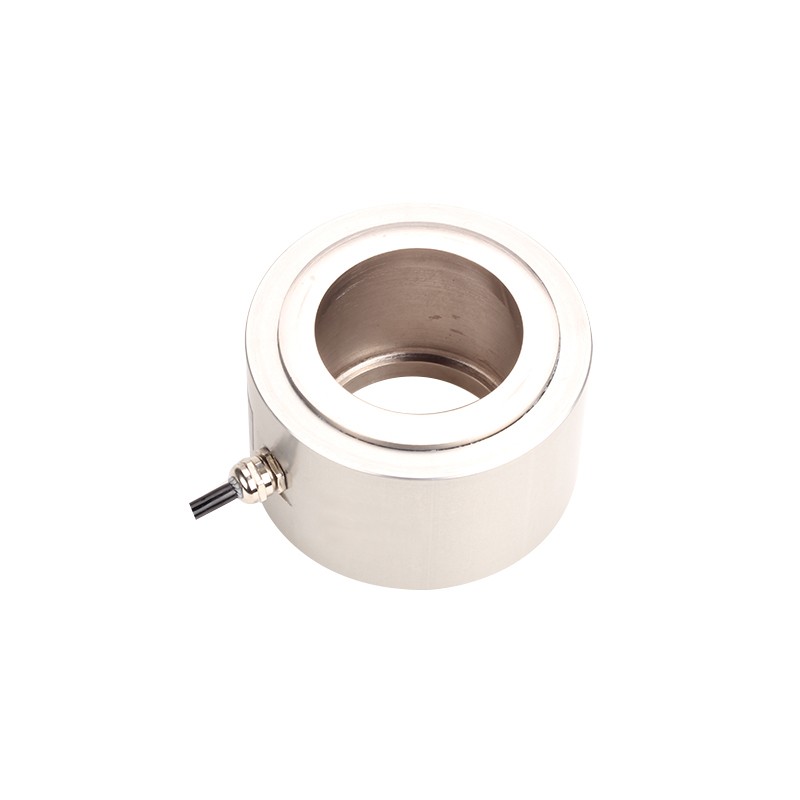

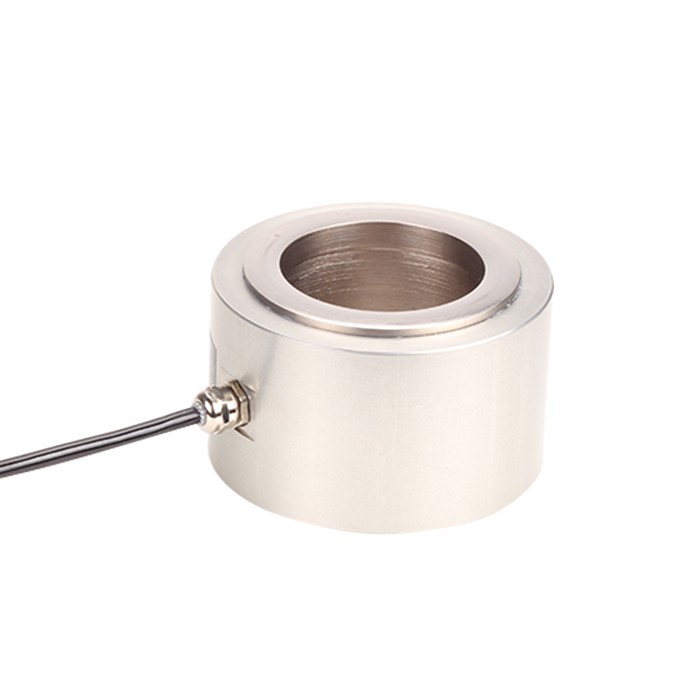

LCC460 Washer Force Transducer

Description:

Model: LCC460

Features:

1. Capacities (t): 5 to 300

2. Compact structure, easy to install

3. High quality alloy steel with nickel plating

4. Full welding sealing Structure

5. High comprehensive precision, high stability

6. Degree of protection can reach to IP66

7. Stainless Steel is available

8. Can be custom-made

Applications:

Be suitable for a wide range of applications including testing or weighing systems.

Specifications:

Rated Load	t	5,10,20,50,100,200,300
Rated Output	mV/V	1.2-1.5
Zero Balance	%R.O.	±2
Comprehensive Error	%R.O.	±1
Creep/30 minutes	%R.O.	±0.1
Repeatability	%R.O.	±0.3
Compensated Temp. Range	‌℃	-10~+40
Operating Temp. Range	℃	-20~+70
Temp. effect/10℃ on output	%R.O./10℃	±0.2
Temp. effect/10℃ on zero	%R.O./10℃	±0.2
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	380±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000(50VDC)
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Alloy Steel
Degree of protection		IP66
The length of the cable	m	10m

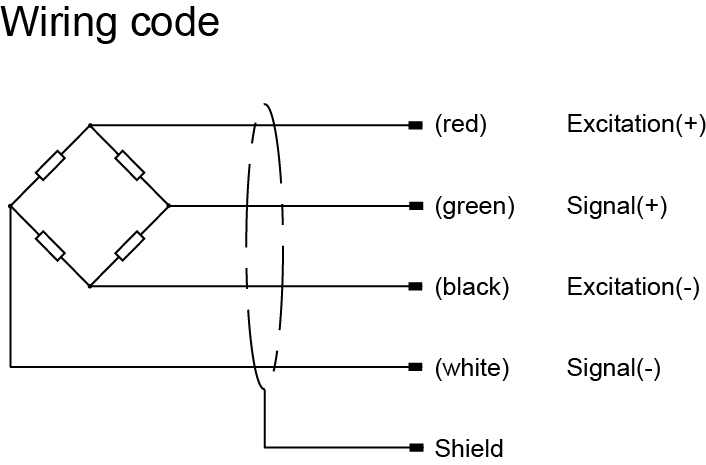

Wiring code	Ex:	Red:＋ Black:–
Wiring code	Sig:	Green:＋ White:–

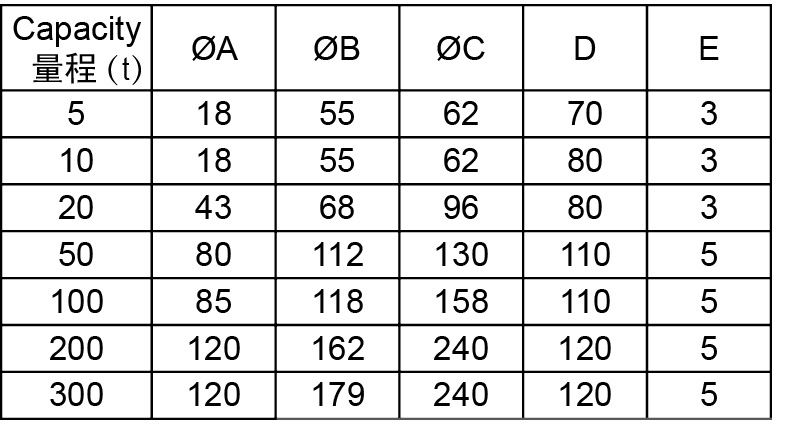

Dimensions(in mm)：
