Can the scale tensiometer measure the tension during the coil winding process?


Scale tensiometer refers to a tensiometer that uses a dial and pointer to indicate the amount of tension, which is commonly referred to as a pointer tensiometer. The tension in the winding process of the winding machine needs a tension meter to measure, so can the scale tensiometer measure the tension during the winding process?

the answer is negative. The tension fluctuation during the winding process is very large, which will cause the pointer of the scale tensiometer to swing violently back and forth, and it is impossible to accurately read a reference reading. Therefore, the measurement purpose cannot be achieved.

You can choose NT series, NM series and other electronic tension meters produced by Betten Technology Co., Ltd., which adopts digital display and can adjust damping of the display, eliminate the influence of tension fluctuation, and read a reliable reference value. The following are the parameters of the NT series for your reference.

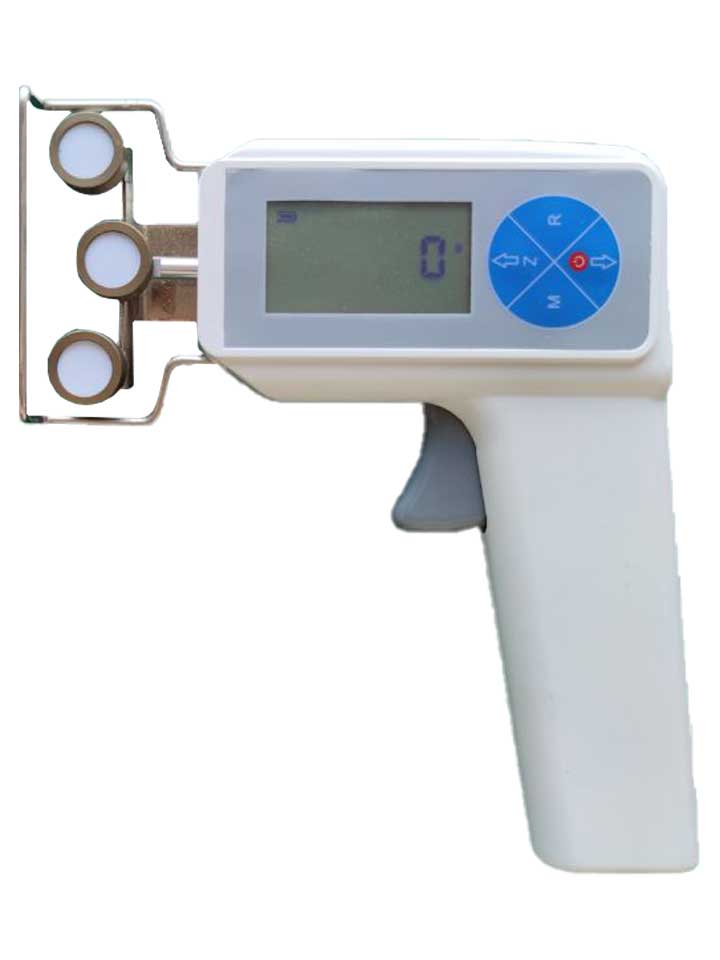

NM series Electronic tension meters is suitable for the measurement of fine materials such as textiles, chemical fiber wires, the measuring range is from 1-200g to 1-500g

New Features of Model NM Series

1. The patented technology automatically resets the meter to zero , which improves the measurement accuracy and facilitates measurement.

2. The tested material, the guide roller, and the screen are located on the same plane., the test data, the status of the guide roller and the tested material can be seen During the test.

3. The screen display direction can be changed according to the customer's holding method, which is convenient for reading.

4. g, c N can be selected as the unit for measuring value display.

5. Record the maximum value, minimum value and average value during the measurement.

6. Equipped with lead frame and guide roller movement structure, easy to capture the tested material

7. The measuring head of the NTS is a ball bearing V-groove guide roller with a maximum speed of 900 m / min

8.LIPO lithium-ion polymer battery (about 30 hours of continuous operation)

Model NM

Model

Tension range

Measuring head   width

Calibration   materials (Polyamide Monofilament)

NM-200

1-200g

70mm

φ0.2mm

NM-500

1-500g

70mm

φ0.2mm

Specifications:

Accuracy :             (calibration material) ± 1% of full scale (FS), (other materials) ± 3% of full scale (FS)

Display update frequency 0.5 seconds

Optional unit           g, cN

Line speed NTS         900m / min

Stored value           Maximum, minimum, average

Display               LCD

Case size              225X45 X 30 mm

Power                Li-ion rechargeable battery, continuous working for about 30 hours

Operating temperature    10-45 ° C, 90% relative humidity or less

Shipment include         tension meter, instruction manual, certificate, charger, instrument box

Scope of application Tension measurement of yarn, chemical fiber, fine metal wire in textile, chemical fiber, wire and cable industry
