Digital wire tension meter digital wire tension guage

digital wire tension meter digital wire tension guage

digital wire tension meter digital wire tension guage

Description:

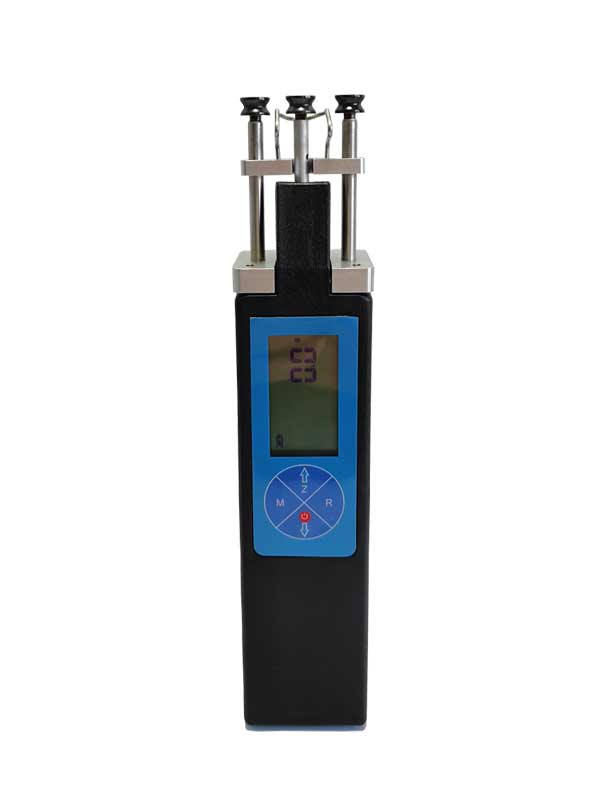

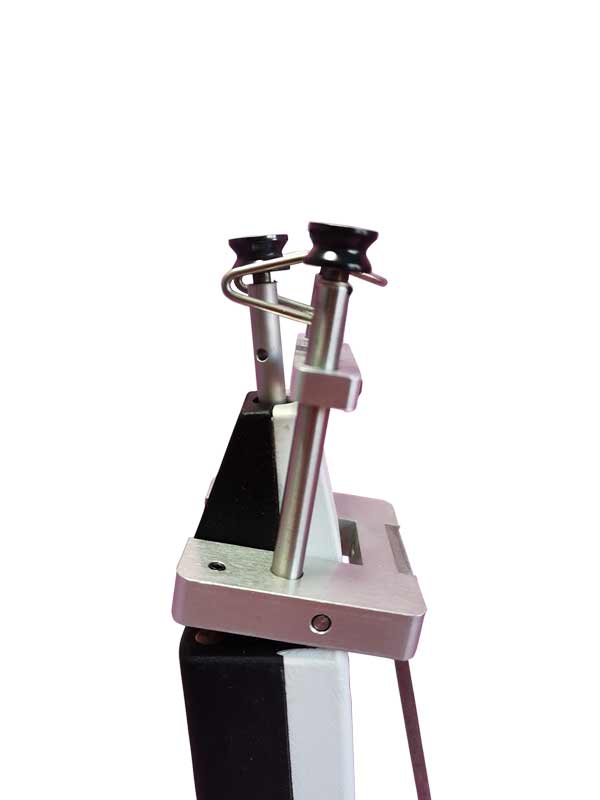

digital wire tension meter is used to measure the dynamic tension of various flexible wires. It is equipped with a digital display device and a movable yarn clamping device, it’s a portable device for tension measurement. digital wire tension guage is used in various spinning machines, stretching machines, deforming machines, twisting machines, and winding machines , Warping machines, circular looms, towel looms, ribbon looms. digital wire tension meter can be used for static and dynamic tension testing of various wool, silk, chemical fiber and metal wire drawing, glass fiber and optical fiber products. In order to improve yarn quality and Provide a reliable basis for performance.

Model NTS

Model

Tension range

Measuring head   width

Calibration   materials (Polyamide Monofilament)

NTS-50

0.3-50.0 cN

40mm

φ0.2mm

NTS-100

1.0-100.0 cN

40mm

φ0.2mm

NTS-200

2.0-200. cN

40mm

φ0.2mm

NTS-500

5-500 cN

40mm

φ0.2mm

Unit conversion: 1cN = 1.02g

Specifications:

Accuracy :             (calibration material) ± 1% of full scale (FS), (other materials) ± 3% of full scale (FS)

Display update frequency 0.5 seconds

Optional unit           g, cN

Line speed NTS         900m / min

Stored value           Maximum, minimum, average

Display               LCD

Case size              225X45 X 30 mm

Power                Li-ion rechargeable battery, continuous working for about 60 hours

Operating temperature    10-45 ° C, 90% relative humidity or less

Shipment include         tension meter, instruction manual, certificate, charger, instrument box


Scope of application Tension measurement of yarn, chemical fiber, fine metal wire in textile, chemical fiber, wire and cable industry
