BTS BTS

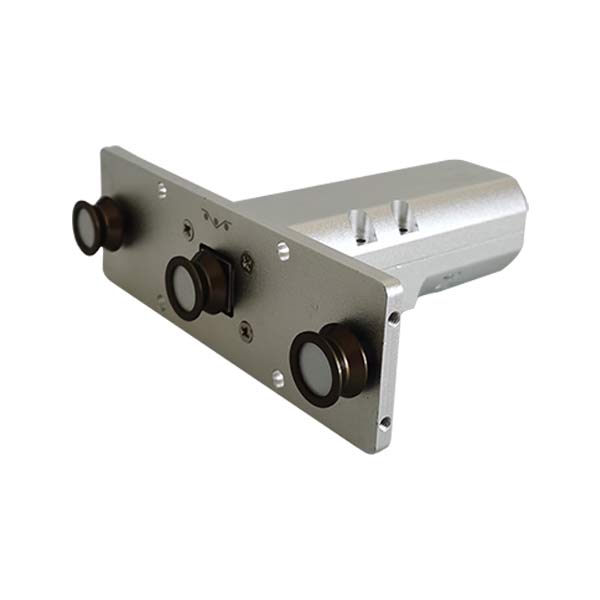

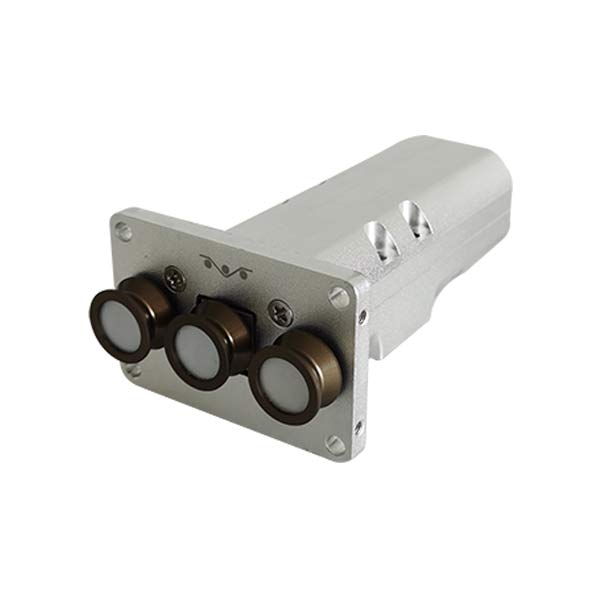

BTS series tension sensor is suitable for tension measurement and monitoring of copper wire, enameled wire, steel wire, yarn and other wire materials.


Technical data – BTS series:

Rated measuring ranges available(FS):0-0.5N to 0-1000N

Accuracy :      ±1%FS

Calibration:      According to BETTEN factory procedure


Power supply:       5-10VDC

Input resistance:     350±5

Out resisitance:      350±5

Isolation resistance:   ≥3000MΩ(50VDC)


Output on zero point:      <0.1mv/v

Temperature influence on zero point:  ±0.05%FS/10℃

Temperature influence on zero calibratiuon:±0.05%FS/10℃


Overload protection:      200%FS

Air humidity:      85%RH,MAX

Operational temperature range :  -10到+40℃

Housing material:    aluminium

Weight net(gross):    approx. 400g(900g)

Connection cable:      robust, flexible, shielded

4X0.2²,3mlong ,Cable ∅6mm,open ends with splices. Sheath special PVC


Connection type:    Excitation voltage +:red

Excitation voltage -:black

                    Output signal +:green

Output signal -:white

                    Shielded wire:silver

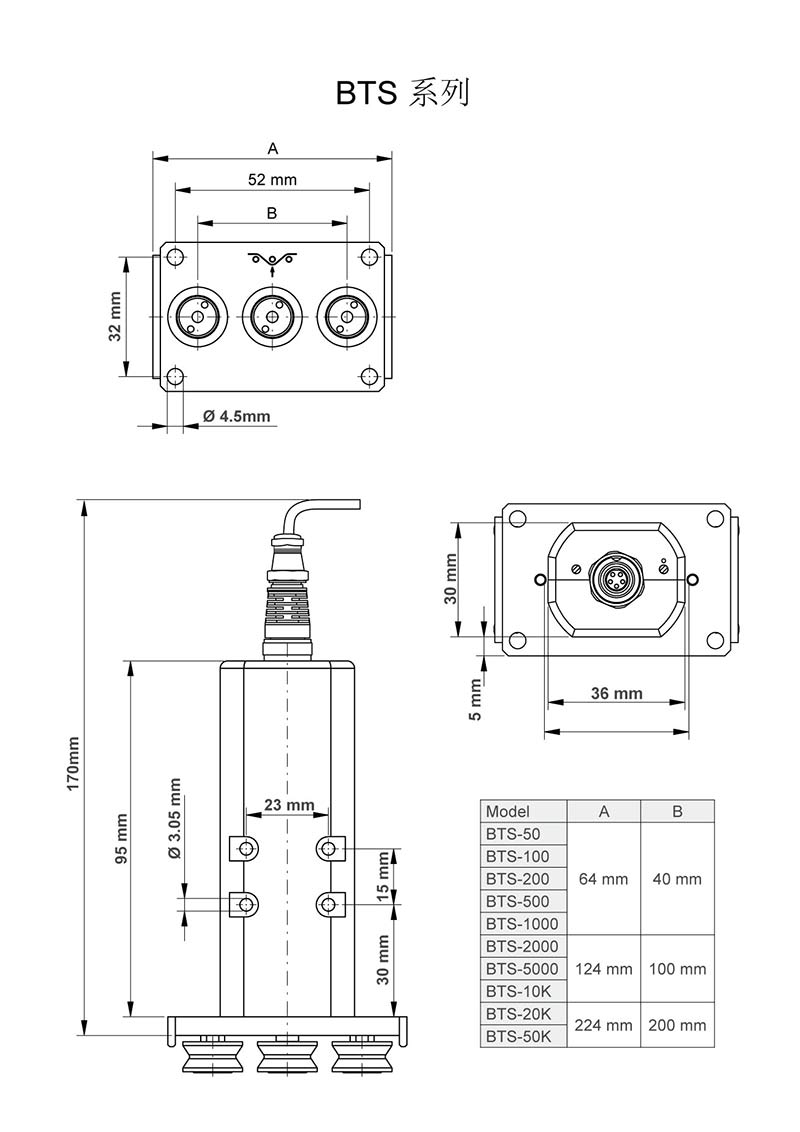

Model

Tension range

Calibration material

BTS-50

0.5-50.0cN

φ0.12mm (PA.)

BTS-100

1.0-100.0 cN

φ0.12mm(P.A.)

BTS-2009

2.0-200.0 cN

φ0.2mm(P.A.)

BTS -500

5.0-500.0 cN

φ0.2mm(P.A.)

BTS -1000

10-1000 cN

φ0.4mm(P.A.)

BTS-2000

20-2000 cN

φ0.7mm(P.A.)

BTS-5000

50-5000 cN

φ1.2mm(P.A.)

BTS -10K

1.0-100.0N

φ1.2mm (P.A.)

BTS -20K

2.0-200.0N

φ2mm Steel rope

BTS-50K

5.0-500.0N

φ2mmSteel rope

BTS-100K

10-1000N

φ2mmSteel rope
