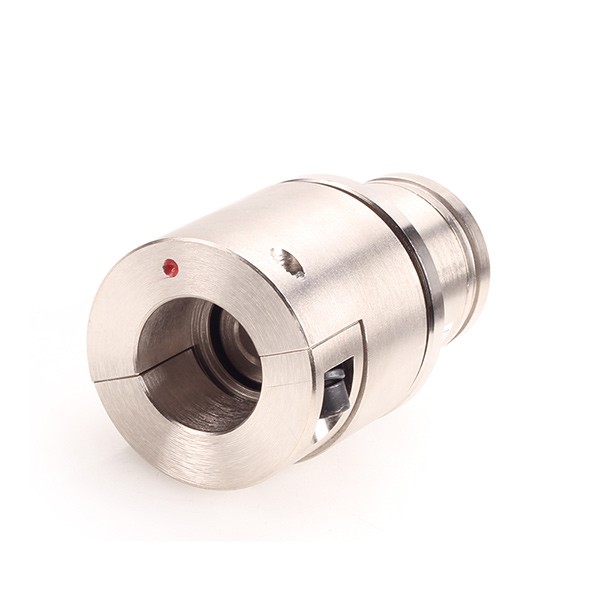

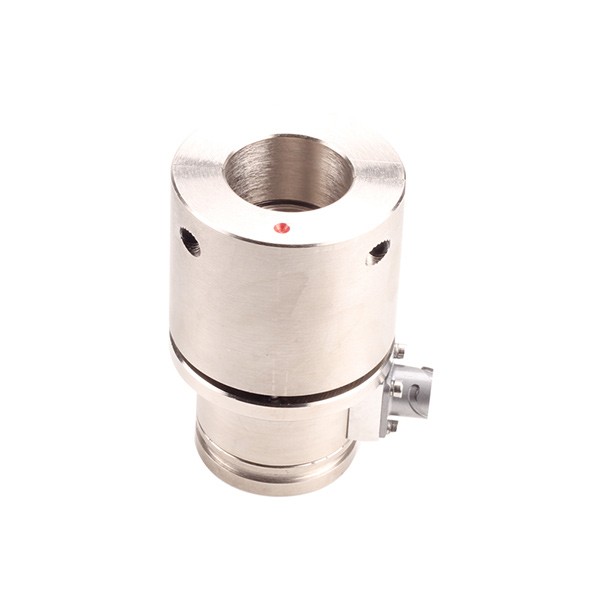

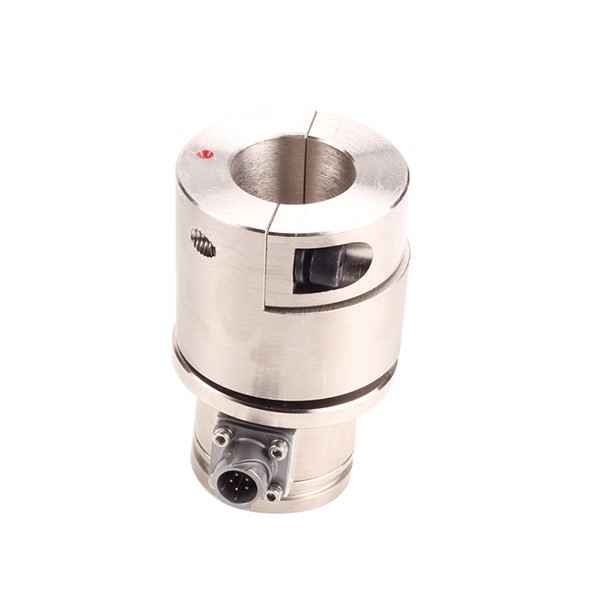

Tension Sensor

Description:

       Model: CLT
       Features:

1. Capacities (kg): 10 to 250

2. Resistance strain measurement methods

3. The level of water-proof reaches IP65

4. It can accurately measure in the low tension

5. Compact structure, easy to install

6. High comprehensive precision, high stability

7. High quality alloy steel with nickel plating

8. Stainless steel material is available

9. Many installations types can satisfy various needs

Applications:

       Be suitable for measuring the tension, mainly applied for the paper makingchemical industry and other industries.

Specifications:

Rated Load

kg

10,25,50,75,150,250

Rated Output

mV/V

1 ± 0.1%

Zero Balance

%R.O.

±1

Comprehensive  Error

%R.O.

±0.3

Compensated Temp. Range

-10~+40

Operating Temp.   Range

-20~+70

Temp. effect/10 on   output

%R.O./10

±0.02

Temp. effect/10 on zero

%R.O./10

±0.02

Recommended   Excitation Voltage

VDC

5-12

Maximum  Excitation    Voltage

VDC

15

Input impedance

Ω

380±10

Output impedance

Ω

350±5

Insulation   resistance

≥500050VDC

Safe Overload

%R.C.

150

Ultimate Overload

%R.C.

300

Material

Alloy   Steel

Degree of protection

IP65

The length of the   cable

m

3m

Wiring code

Ex:

Red:+     Black

Sig:

Green:+    White

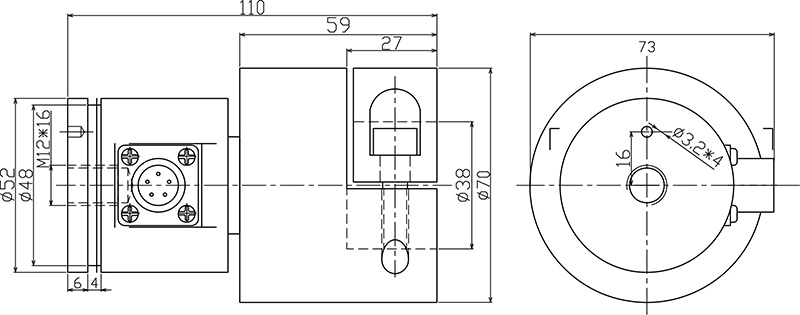

Dimensions(in mm):


Installation:

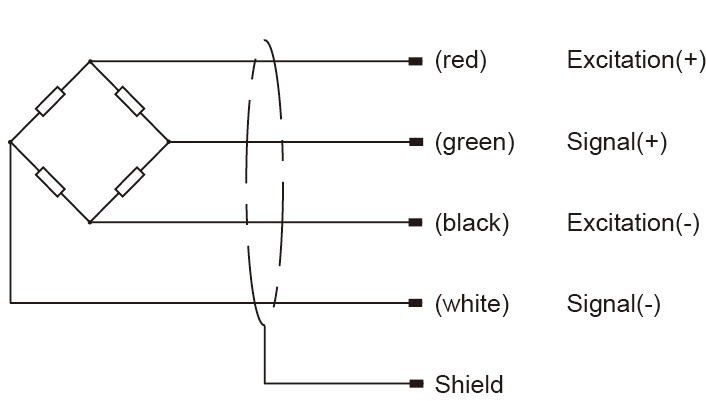

Wiring Code
