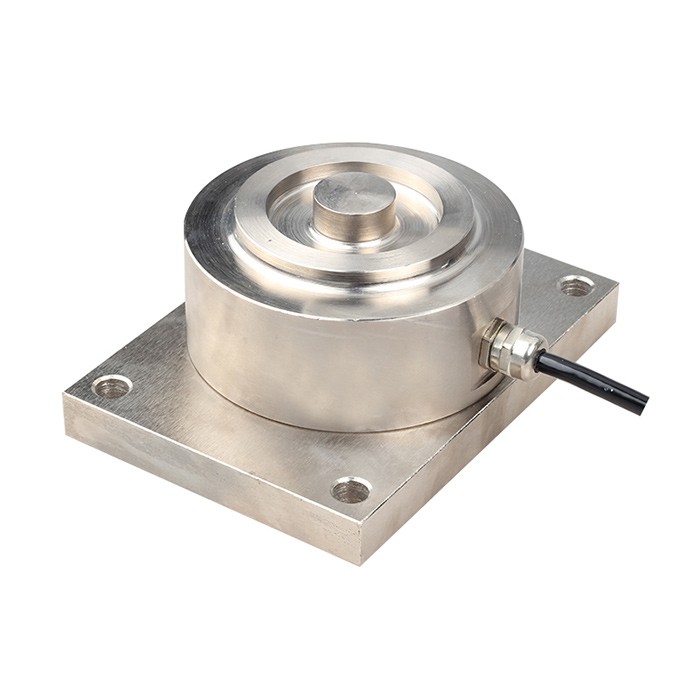

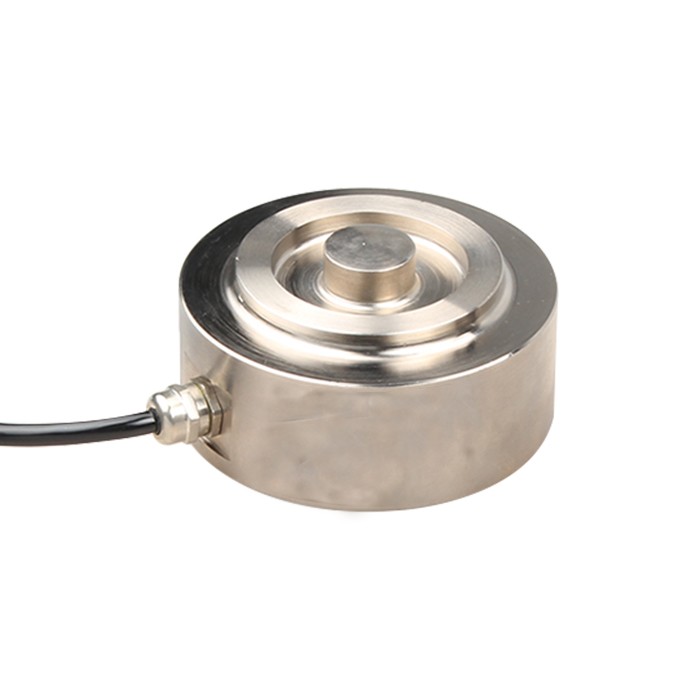

LCD805 Low Profile Disk Load Cell

Description:

           Model: LCD805

           Features:

                 1. Capacities (t): 1 to 16

                 2. Compact structure, easy to install

                 3. Compression load cell

                 4. Low profile, spherical designing

                 5. High quality alloy steel with nickel plating

                 6. Degree of protection can reach to IP68

                 7. Analog output 4-20mA is optional

                 8. The height is very low, the height is less than 48mm

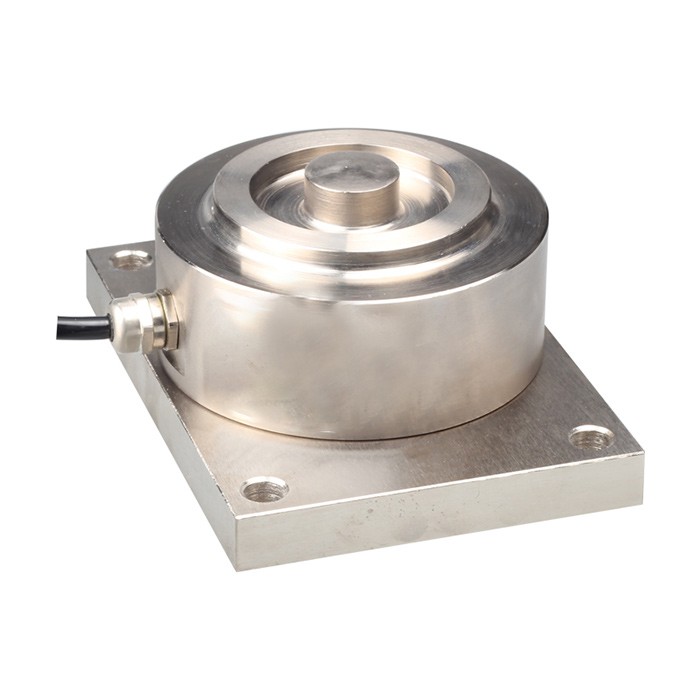

                 9. Be matched with top plate and bottom plate

Applications:

            Be suitable for the fields of Level control for liquid and bulk materials.

 Specification:

Dimensions(in mm)：

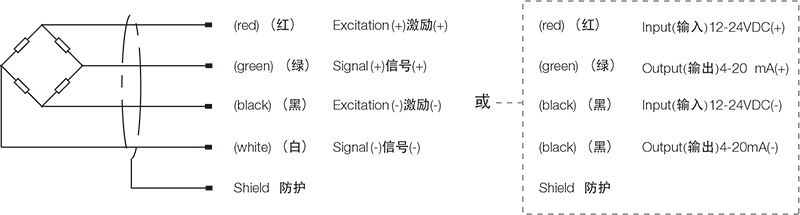

接线方式：
