textile tensile tester textile tension gauge


In the textile industry, the tension of yarn, fiber, ribbon is an important process parameter that affects the quality of the final product. The tension is not adjusted well, which may cause uneven surface and inconsistent tensile strength of the final product. The tensile   tester and textile tension gauge provided by Betten Technology Co., Ltd. are very convenient to solve the problem of tension test. NTS series textile tensile tester is small and light, with automatic zeroing function, convenient and accurate testing. The NTSC series is suitable for tension measurement of high-speed chemical filaments, with a maximum speed of 6000m / min. You can choose mode such as NTS-100, NTS-200, NTS-500, NTSC-100, NTSC-200, NTSC-500 and other models.

NTS series is suitable for the measurement of fine materials such as textiles, chemical fiber wires and cables, the measuring range is from 0.5-50.0g to 5-500g

NTS series has 4 kinds of tension range from 0.3-50.0cN to 10-1000cN

cNew Features of Model NTS Series

1. The patented technology automatically resets the meter to zero , which improves the measurement accuracy and facilitates measurement.

2. The tested material, the guide roller, and the screen are located on the same plane. During the test, the test data, the status of the guide roller and the tested material can be seen.

3. The screen display direction can be changed according to the customer's holding method, which is convenient for reading.

4. g, c N can be selected as the unit for measuring value display.

5. Record the maximum value, minimum value and draw value during the measurement.

6. Equipped with lead frame and guide roller movement structure, easy to capture the tested material

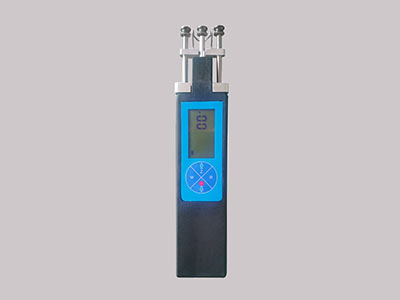

NTS Features

Convenient and intuitive observation Guide roller, material to be measured, readings can be seen on the same plane.

Guide roller moving device and lead frame ensures easy capture of moving material

V-groove guide roller with ball bearing

LIPO lithium-ion polymer battery (about 60 hours of continuous operation)

The measuring head of the NTS is a ball bearing guide wheel with a maximum speed of 900 m / min

Guide wheel Drawing

Model NTS

Model

Tension range

Measuring head   width

Calibration   materials (Polyamide Monofilament)

NTS-50

0.3-50.0 cN

40mm

φ0.2mm

NTS-100

1.0-100.0 cN

40mm

φ0.2mm

NTS-200

2.0-200. cN

40mm

φ0.2mm

NTS-500

5-500 cN

40mm

φ0.2mm

Unit conversion: 1cN = 1.02g

Specifications:

Accuracy :             (calibration material) ± 1% of full scale (FS), (other materials) ± 3% of full scale (FS)

Display update frequency 0.5 seconds

Optional unit           g, cN

Line speed NTS         900m / min

Stored value           Maximum, minimum, average

Display               LCD

Case size              225X45 X 30 mm

Power                Li-ion rechargeable battery, continuous working for about 60 hours

Operating temperature    10-45 ° C, 90% relative humidity or less

Shipment include         tension meter, instruction manual, certificate, charger, instrument box

Scope of application Tension measurement of yarn, chemical fiber, fine metal wire in textile, chemical fiber, wire and cable industry
