yarn tension meter for circular knitting machine


Text: circular knitting machine is an important equipment in the textile industry, which is widely used in the production of underwear, socks and other textile products. In the production process, each yarn on the circular knitting machine needs to maintain the same tension, otherwise there will be many problems with the product. How to choose a suitable yarn tension meter? It is mainly considered from two aspects. First, the yarn tension should be very small, easy to be used . a small range of yarn tension meter with high resolution. The guide wheel of tension meter must be very flexible, otherwise the measurement accuracy will be affected. The other is that the tension meter needs to have the function of automatic zero clearing, otherwise different holding position will cause extra errors.

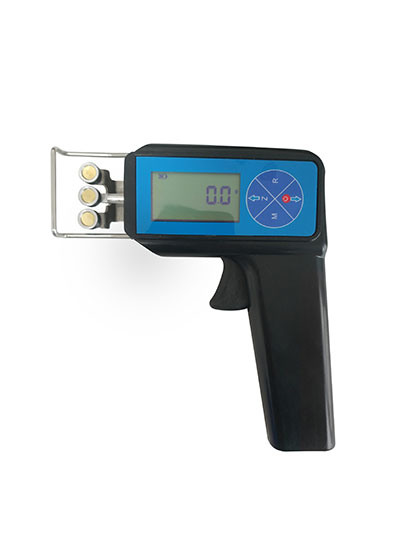

There are not many tension meters satisfying these conditions. You can choose NK-100 yarn tension meter produced by Shenyang BETTEN Technology Co., Ltd. The following are the specific parameters of NK series tension meter.

New Features of Model NK Series

1. The patented technology automatically resets the meter to zero , which improves the measurement accuracy and facilitates measurement.

2. The tested material, the guide roller, and the screen are located on the same plane., the test data, the status of the guide roller and the tested material can be seen During the test.

3. The screen display direction can be changed according to the customer's holding method, which is convenient for reading.

4. g, c N can be selected as the unit for measuring value display.

5. Record the maximum value, minimum value and average value during the measurement.

6. Equipped with lead frame and guide roller movement structure, easy to capture the tested material

7. The measuring head of the NTS is a ball bearing V-groove guide roller with a maximum speed of 900 m / min

8.LIPO lithium-ion polymer battery (about 30 hours of continuous operation)

Model NK

Model

Tension range

Measuring head   width

Calibration   materials (Polyamide Monofilament)

NK-50

0.3-50.0 cN

40mm

φ0.2mm

NK-100

1.0-100.0 cN

40mm

φ0.2mm

NK-200

1-200cN

40mm

φ0.2mm

Specifications:

Accuracy :             (calibration material) ± 1% of full scale (FS), (other materials) ± 3% of full scale (FS)

Display update frequency 0.5 seconds

Optional unit           g, cN

Line speed NTS         900m / min

Stored value           Maximum, minimum, average

Display               LCD

Case size              225X45 X 30 mm

Power                Li-ion rechargeable battery, continuous working for about 30 hours

Operating temperature    10-45 ° C, 90% relative humidity or less

Shipment include         tension meter, instruction manual, certificate, charger, instrument box

Scope of application Tension measurement of yarn, chemical fiber, fine metal wire in textile, chemical fiber, wire and cable industry
