how to choose a suitable guy wire tension meter?
Guy wire tension measurement is divided into dynamic guy wire tension measurement and static guy wire tension measurement. Tension sensors are mostly used for Dynamic guy wire tension because the tension value is too large to handheld guy wire tension meter. Here is a Selection guide for static guy wire tension meter measurement.
Static guy wire tension measurement is divided into general static guy wire tension measurement and aircraft guy wire tension measurement. Generally the measurement space of static guy wire tension measurement is not limited. When selecting a guy wire tension meter, the model of the guy wire tension meter is determined mainly by the wire diameter specification and tension measurement range.

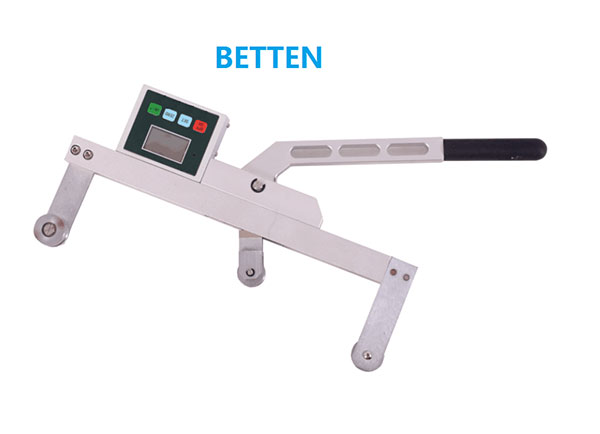

For example, if the wire diameter is less than 20mm and the measuring range is less than 500KG, you can choose the BDRS series guy wire tension meter of Betten Technology Co., Ltd. The measurement channel of the corresponding wire diameter can be calibrated according to the customer's requirements at the factory, and the measurement channel can be selected according to the wire diameter specification during measurement. For example, the tension test of the high-speed railway contact net sling can use the BDR series guy wire tension meter.
If the measuring range is larger than 500KG and the wire diameter is also relatively large, you can choose the BDR series tension meter from Betten Technology Co., Ltd. The maximum tension can be measured up to 20 tons, and the wire diameter range is 20-40mm.
For elevator steel rope tension measurement, we have a dedicated wire rope tension meter ESR series.
Above we analyzed the guy wire tension meter that should be selected for several guy wire tension tests commonly used in daily industrial production.
