yarn tension meter for sale yarn tension meter price


Shenyang Betten Technology Co., Ltd. Have yarn tension meter for sale. yarn tension meter used in the textile yarn industry is characterized by a small measuring range and high measurement accuracy. In addition, there are also differences in usage habits. Some equipment is suitable for pistol-type tension meter. For example, the most commonly used in the production of large circular machines is the pistol-type tension meter. a straight bar type tension meter is always used on winder, such as the NTS series of Betten Technology Co., Ltd. It is compact and lightweight, and it has auto-zero function, it is very practical. In the spinning stage of the chemical fiber production process, since the linear velocity is very high, the measuring head of the tension detector cannot use a guide wheel, and a ceramic wire post is generally used. For example, the NTSC series ceramic wire column tension meter of Betten Technology Co., Ltd. Has auto-zero function, which is very convenient and accurate to use. Welcome to inquire the yarn tension meter price.

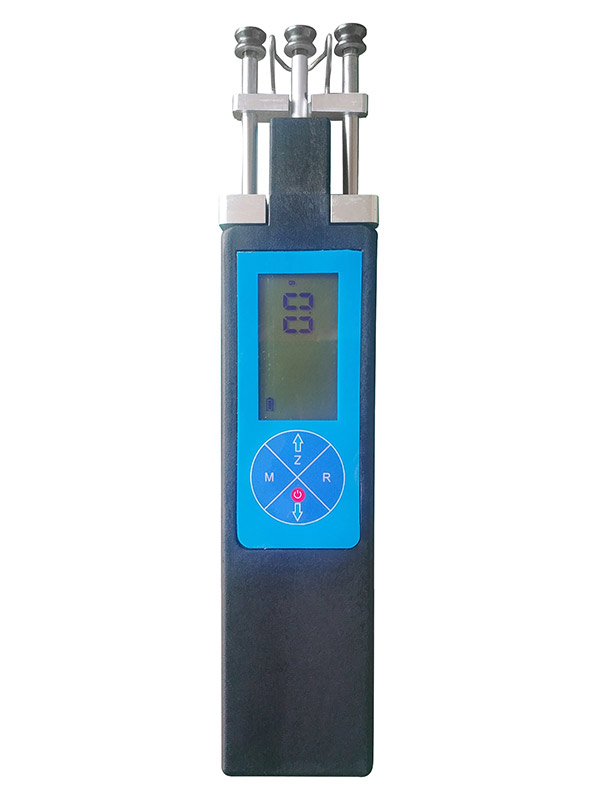

New Features of Model NTS Series

1. The patented technology automatically resets the meter to zero , which improves the measurement accuracy and facilitates measurement.

2. The tested material, the guide roller, and the screen are located on the same plane. During the test, the test data, the status of the guide roller and the tested material can be seen.

3. The screen display direction can be changed according to the customer's holding method, which is convenient for reading.

4. g, c N can be selected as the unit for measuring value display.

5. Record the maximum value, minimum value and draw value during the measurement.

6. Equipped with lead frame and guide roller movement structure, easy to capture the tested material

7. The measuring head of the NTS is a ball bearing V-groove guide roller with a maximum speed of 900 m / min

8.LIPO lithium-ion polymer battery (about 60 hours of continuous operation)

Model NTS


Tension range

Measuring head   width

Calibration   materials (Polyamide Monofilament)


0.3-50.0 cN




1.0-100.0 cN




2.0-200. cN




5-500 cN



Unit conversion: 1cN = 1.02g


Accuracy :             (calibration material) ± 1% of full scale (FS), (other materials) ± 3% of full scale (FS)

Display update frequency 0.5 seconds

Optional unit           g, cN

Line speed NTS         900m / min

Stored value           Maximum, minimum, average

Display               LCD

Case size              225X45 X 30 mm

Power                Li-ion rechargeable battery, continuous working for about 60 hours

Operating temperature    10-45 ° C, 90% relative humidity or less

Shipment include         tension meter, instruction manual, certificate, charger, instrument box

Scope of application Tension measurement of yarn, chemical fiber, fine metal wire in textile, chemical fiber, wire and cable industry
